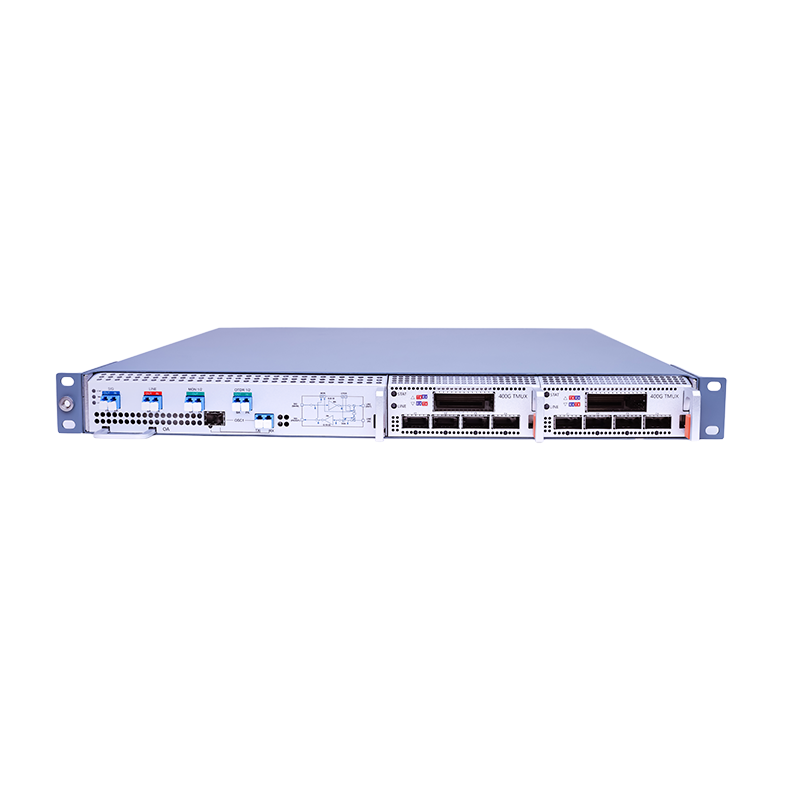

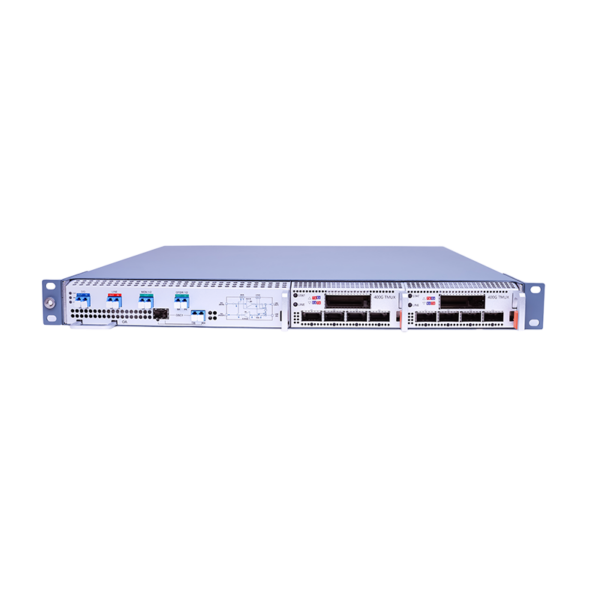

HT6800 DCI BOX
HT6800 DCI BOX - Image 2

HT6800 DCI BOX

The HT6800 is an industry-leading innovative DCI transmission platform. Featuring compact size, massive capacity for service access, ultra-long-distance transmission, user-friendly operation and maintenance, reliable performance, and energy efficiency, it effectively meets the demands of long-distance, high-bandwidth data center interconnection. The HT6800 features modular design enabling both cost-effective photoelectric decoupling and integrated photoelectric frame management. With SDN capabilities, it supports YANG model interfaces based on the NetConf protocol, along with Web, CLI, and SNMP management methods.
16T+
Node Capacity
1U / 2U
Chassis Options
800G
Max Line Rate
2 Slots
Chassis Slot Usage
Sample Request
N×400G
High-Capacity Transport
Ultra-Long
Distance Transmission
SDN-Ready
Intelligent Open Network
1+1
Redundancy Protection
Product Overview

Industry-Leading DCI Platform

The HT6800 is HTFUTURE's flagship innovative DCI transmission platform. Combining a compact form factor with massive service capacity, it delivers ultra-long-distance transmission with user-friendly operation and reliable performance — purpose-built for high-bandwidth data center interconnection.

Its modular design enables both cost-effective photoelectric decoupling and integrated photoelectric frame management. With full SDN capabilities, the HT6800 creates an intelligent, open network architecture supporting YANG model interfaces via NetConf protocol, plus Web, CLI, and SNMP management methods.

Designed for national backbone, provincial backbone, and metropolitan backbone networks as well as DCI — meeting demand for nodes exceeding 16T capacity and standing as the industry's most cost-effective transmission platform.

NetConf / YANG Web / CLI / SNMP SDN Capable 16T+ Capacity Modular Design Photoelectric Decoupling
System Architecture
Management Web · CLI · SNMP
SDN Controller NetConf / YANG
Electrical Layer 100G / 200G / 400G / 800G
Optical Layer OA · OLA · WSS · OTDR · OCM
Power Supply Dual 1+1 · AC/DC/-48V
Chassis 1U (4-slot) · 2U (8-slot)
Core Advantages

Why Choose HT6800?

Compact & Modular
1U/2U 19-inch form factor with modular card insertion. Supports mixed electrical and optical layer cards in the same chassis for maximum flexibility.
Massive Capacity
Supports nodes exceeding 16T aggregate capacity. Mixed transmission of 10G / 100G / 200G / 400G / 800G services on a single platform.
Ultra-Long Distance
Built for national and provincial backbone networks as well as DCI. Optimized amplification and optical monitoring ensure link integrity over extreme distances.
SDN & Open Architecture
YANG model interfaces over NetConf protocol with SDN controller integration, creating an intelligent, programmable, and vendor-open network fabric.
High Reliability
Dual power supply with 1+1 backup (AC/High voltage DC/-48V options). Dual MPU on 2U chassis with 1+1 protection for control plane redundancy.
Cost Effective
Photoelectric decoupling reduces per-bit cost. Recognized as the industry's most cost-effective transmission platform for IDCs and internet service providers.
Hardware Platform

Chassis Options

The HT6800 DCI BOX series offers two standard 19-inch chassis configurations to suit different deployment scenarios.

1U Chassis 4 SLOTS
Size442 × 510 × 44 mm (W×D×H)
MPUSingle MPU
Slots4 slots — Mixed service card insertion
Service10G / 100G / 200G / 400G / 800G mixed
PowerDual 1+1 · AC220V / High-V DC / -48V
Mgmt2× RJ45 GbE · 1× Micro Console · 2× OSC · 2× USB-A
2U Chassis 8 SLOTS
Size442 × 484 × 88 mm (W×D×H)
MPUDual MPU with 1+1 protection
Slots8 slots — Mixed service card insertion
Service10G / 100G / 200G / 400G / 800G mixed
PowerDual 1+1 · AC220V / High-V DC / -48V
Mgmt2× RJ45 GbE · 1× RJ45 Console · 2× OSC · 1× USB-A · 2× MUX
Line Cards

HT6800 Service Cards

A comprehensive portfolio of electrical and optical layer cards, supporting mixed insertion within the same chassis.

Deployment Scenarios

Where HT6800 Excels

Designed for the most demanding optical transport environments across the network hierarchy.

Data Center Interconnect
High-bandwidth DCI for IDCs and internet service providers. Cost-effective photoelectric decoupling for massive scale.
National Backbone
Meets capacity and reliability demands of national backbone networks with 16T+ node capacity and ultra-long-haul reach.
Metro Backbone
Compact 1U/2U form factor ideal for metro node deployments where space is at a premium, without compromising capacity.
Provincial Backbone
Scalable modular architecture with OLP protection and OTDR monitoring ensures carrier-grade reliability across provincial rings.
Network Management

Intelligent O&M Capabilities

Web Management
Browser-based NMS with intuitive dashboards, real-time alarms, and topology views.
CLI Interface
Full-featured command-line interface for scripting, automation, and advanced configuration.
SNMP v1/v2/v3
Standard SNMP for integration with third-party NMS platforms and enterprise monitoring.
NetConf / YANG
SDN-ready YANG model interfaces via NetConf enable full programmability and controller integration.

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Rohs (1)
