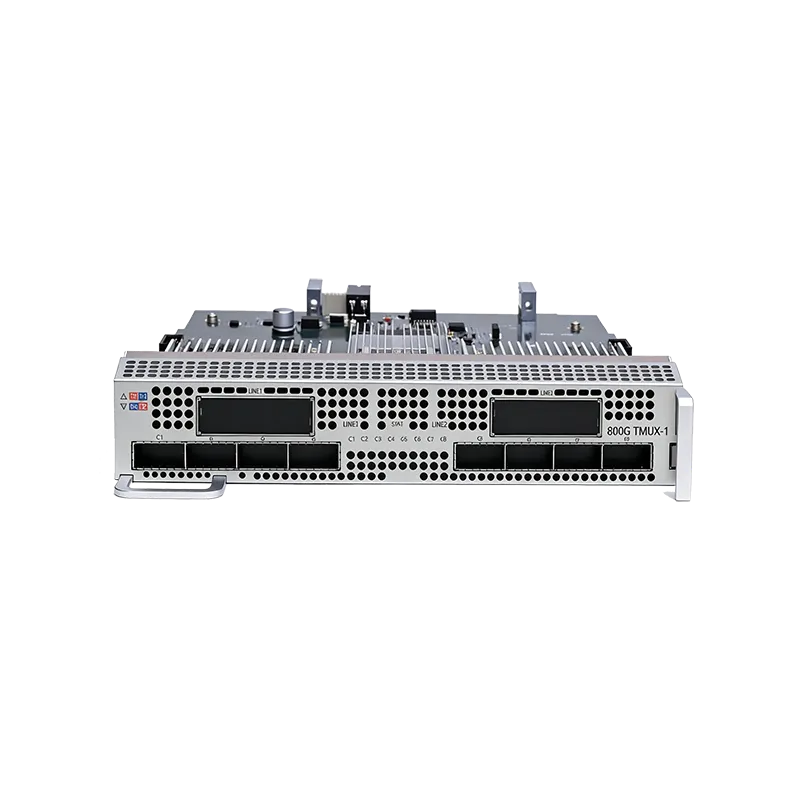

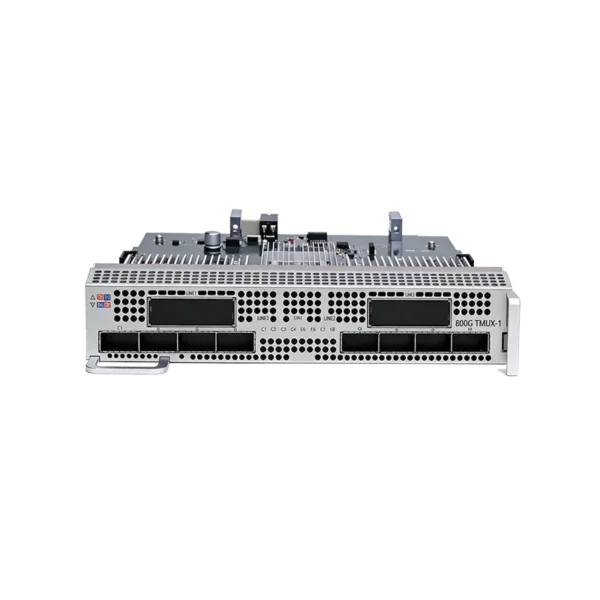

The HT6800-800GTMUX-1 is the flagship 800G Muxponder card for the HT6800 DCI DWDM Optical Transmission System. The client side supports 8×100GE QSFP28 or 8×200GE QSFP56 service access, while the dual line-side CFP2 slots support 2×800G independent transmission or 1×800G with 1+1 redundancy protection. Occupies 2 slots in the HT6800 chassis.
Dual CFP2 slots support flexible 400G, 800G, or 2×800G independent line-side transmission, delivering up to 1.6 Tbps per card.
Dual CFP2 slots enable 1+1 redundancy protection mode, ensuring mission-critical optical link continuity without manual intervention.
Supports 8×QSFP28 (100GE) or 8×QSFP56 (200GE) client-side configuration, accommodating 100GE, 100GE FlexE, and 200GE service types.
Supports 190.7–196.65 THz with adjustable wavelengths at 75/100/150 GHz intervals and tunable DCO output power per line-side slot.
Supports DDM digital diagnosis, OSNR monitoring, and real-time BER monitoring for both line-side slots independently.
Full LLDP and RMON statistics, delay measurement, hardware/software loopback, ALS, LFP, and transparent local/remote fault transmission.
| Performance Parameters | |
| Model | HT6800-800GTMUX-1 |
| Client-side Bandwidth | 8×100 Gbps (QSFP28) or 8×200 Gbps (QSFP56) |
| Line-side Bandwidth | 2×800 Gbps independent or 1×800 Gbps (1+1 protection) or 1×400 Gbps (1+1) |
| Service Type |
100GE
100GE FlexE
200GE
|
| Chassis Slot Usage | 2 Slots (HT6800 series chassis) |
| Power Dissipation | ≤150W |
| Optical Parameters | |
| Center Wavelength | 190.7 ~ 196.65 THz |
| Wavelength Grid | 75 GHz / 100 GHz / 150 GHz (adjustable) |
| Output Power | Adjustable per CFP2 DCO slot |
| Supported Functions | |
| Line Protection | 1+1 redundancy protection (dual CFP2 slots) |
| FEC | Supported (enablement configurable) |
| DDM Monitoring | Digital diagnosis, OSNR monitoring, real-time BER monitoring |
| RMON | Packet/byte count, port utilization, CRC errors, error packets |
| LLDP | Supported |
| Delay Measurement | Supported |
| ALS / LFP | Supported |
| Fault Insertion | Local fault insertion; transparent LF/RF transmission |
| Loopback Test | Port hardware and software loop test |
| IDLE Stream | IDLE code stream insertion supported |
OSNR tolerance values for supported modulation formats on the HT6800-800GTMUX-1 line card.
| Modulation Format | Line Rate | OSNR Tolerance |
|---|---|---|
| 400G PM-QPSK | 400G | 17 dB |
| 400G 16QAM-PS | 400G | 18.5 dB |
| 800G PM-16QAM-PS | 800G | 25.5 dB |
| Physical Dimensions | |
| Width | 216 mm |
| Depth | 254 mm |
| Height | 42 mm |
| Environmental Specifications | |
| Working Temperature | -5°C ~ 45°C |
| Storage Temperature | -40°C ~ 80°C |
| Relative Humidity | 5% ~ 95% (no condensation) |
| Power | |
| Max Power Dissipation | ≤150W |
| Client Interface | |
| Client Mode A | 8×QSFP28 — 100 Gbps per port (100GE, 100GE FlexE) |
| Client Mode B | 8×QSFP56 — 200 Gbps per port (200GE) |
| Line Interface | |
| LINE1 Slot | CFP2 800Gbps DWDM coherent module (400GE or 800GE) |
| LINE2 Slot | CFP2 800Gbps DWDM coherent module (400GE or 800GE) |
| Protection Mode | LINE1 + LINE2 → 1+1 redundancy (1×800G or 1×400G protected) |
| Independent Mode | LINE1 + LINE2 → 2×800G independent wavelengths |
| LED Indicators | STAT, LINE1, LINE2 indicators; TX/RX per client group |
| Compatibility | |
| Compatible Chassis | HT6800 series product can install in 1U or 2U Chassis, (supports mixed insertion of electrical/optical layer cards) |
| Optional accessories | HT6800-OA, HT6800-OLA, HT6800-OP1/OP2, HT6800-WSS09, HT6800-OTDR, HT6800-OCM, HT6800-TFFxxxx |
