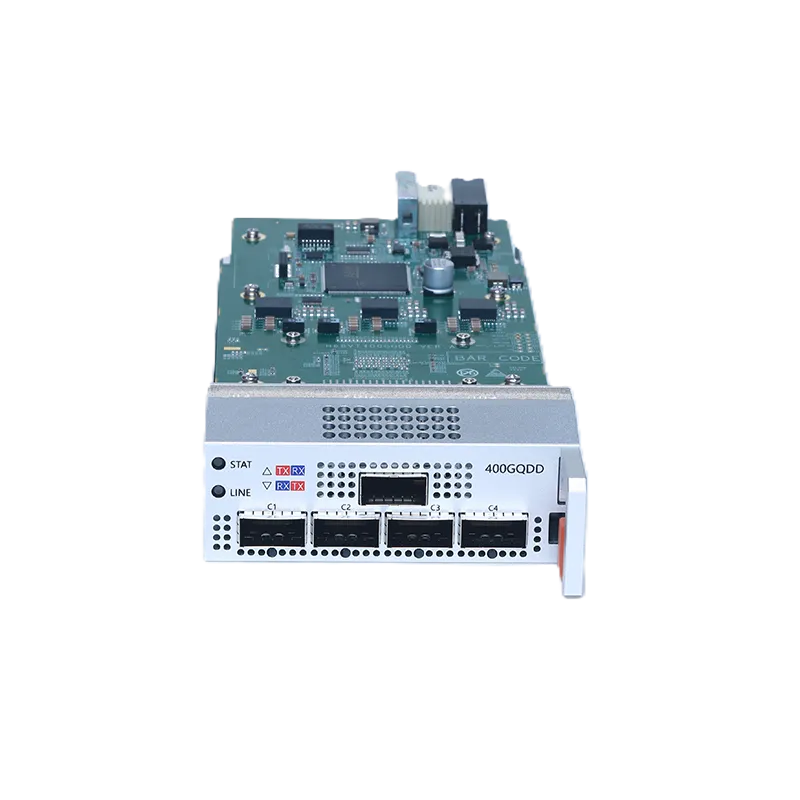

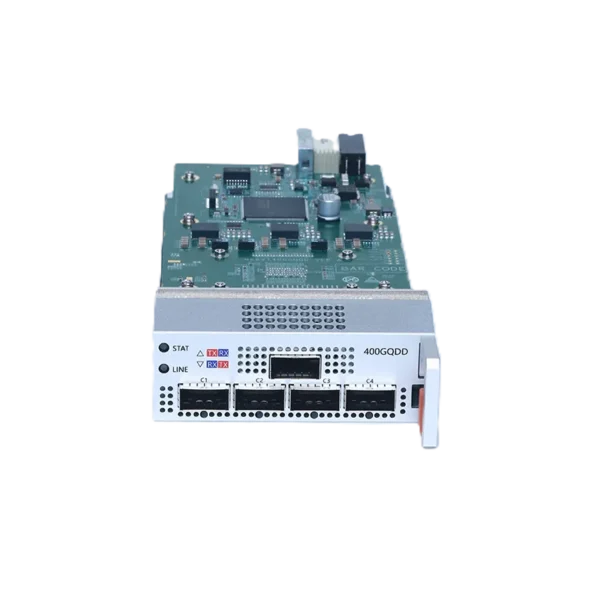

The HT6800-400GQDD is a high-capacity 400G QSFP-DD Muxponder card for the HT6800 DCI DWDM Optical Transmission System. The client side supports 4×100GE service access via four QSFP28 ports (C1–C4), while the line side QSFP-DD slot accommodates 1×400GE, 1×300GE, 1×200GE, or 1×100GE services. Supports 100GE, 100GE FlexE, and other transmission types. Occupies 1 slot in the HT6800 chassis.
Line-side QSFP-DD slot supports flexible single-channel transmission at 100G, 200G, 300G, or 400G, adapting to diverse network capacity requirements.
Four independent QSFP28 client ports (C1–C4) each supporting 100GE, 100GE FlexE, and other service types with FEC enablement and IDLE stream insertion.
Supports 191.3–196.1 THz with adjustable output power and wavelength intervals of 75/100/150 GHz for flexible DWDM network integration.
Supports DDM digital diagnosis, OSNR monitoring, and real-time BER monitoring for proactive performance management and fault detection.
Supports ALS and LFP functions, local fault insertion, and transparent transmission of Local Fault and Remote Fault for comprehensive link protection.
Full LLDP and RMON statistics support (packet/byte count, port utilization, CRC errors), delay measurement, and hardware/software loopback test.
| Performance Parameters | |
| Model | HT6800-400GQDD |
| Client-side Bandwidth | 4×100 Gbps (4×QSFP28, ports C1–C4) |
| Line-side Bandwidth | 1×100G / 1×200G / 1×300G / 1×400G (QSFP-DD) |
| Service Type |
100GE
100GE FlexE
OTU4
|
| Chassis Slot Usage | 1 Slot (HT6800 series chassis) |
| Optical Parameters | |
| Center Wavelength | 191.3 ~ 196.1 THz |
| Wavelength Grid | 75 GHz / 100 GHz / 150 GHz (adjustable) |
| Output Power | Adjustable (range depends on QSFP-DD module type) |
| Supported Functions | |
| FEC | Supported (enablement configurable) |
| DDM Monitoring | Digital diagnosis, OSNR monitoring, real-time BER monitoring |
| RMON | Packet/byte count, port utilization, CRC errors, error packets |
| LLDP | Supported |
| Delay Measurement | Supported |
| ALS / LFP | Supported |
| Fault Insertion | Local fault insertion; transparent LF/RF transmission |
| Loopback Test | Port hardware and software loop test |
| IDLE Stream | IDLE code stream insertion supported |
The HT6800-400GQDD supports four line-side rate modes via a single QSFP-DD slot, enabling flexible capacity scaling without hardware changes.
| Line Rate Mode | Client Port Mapping | Wavelength Grid |
|---|---|---|
| 1×100G | 1×100GE client port active | 75 / 100 / 150 GHz |
| 1×200G | 2×100GE client ports aggregated | 75 / 100 / 150 GHz |
| 1×300G | 3×100GE client ports aggregated | 75 / 100 / 150 GHz |
| 1×400G | 4×100GE client ports aggregated | 75 / 100 / 150 GHz |
| Environmental Specifications | |
| Working Temperature | -5°C ~ 45°C |
| Storage Temperature | -40°C ~ 80°C |
| Relative Humidity | 5% ~ 95% (no condensation) |
| Chassis | |
| Chassis Slot Usage | 1 Slot |
| Compatible Chassis | HT6800 series (supports mixed insertion of electrical/optical layer cards) |
| Interface Specifications | |
| Client Ports | 4×QSFP28 (100 Gbps per port), labeled C1, C2, C3, C4 |
| Line Side | 1×QSFP-DD slot supporting 100G / 200G / 300G / 400G coherent modules |
| LED Indicators | STAT (status), LINE indicator, TX/RX indicators |
| Compatibility | |
| Compatible Chassis | HT6800 series (supports mixed insertion of electrical/optical layer cards) |
| Compatible Modules | HT6800-OA, HT6800-OLA, HT6800-OP1/OP2, HT6800-WSS09, HT6800-OTDR, HT6800-OCM, HT6800-TFFxxxx |
