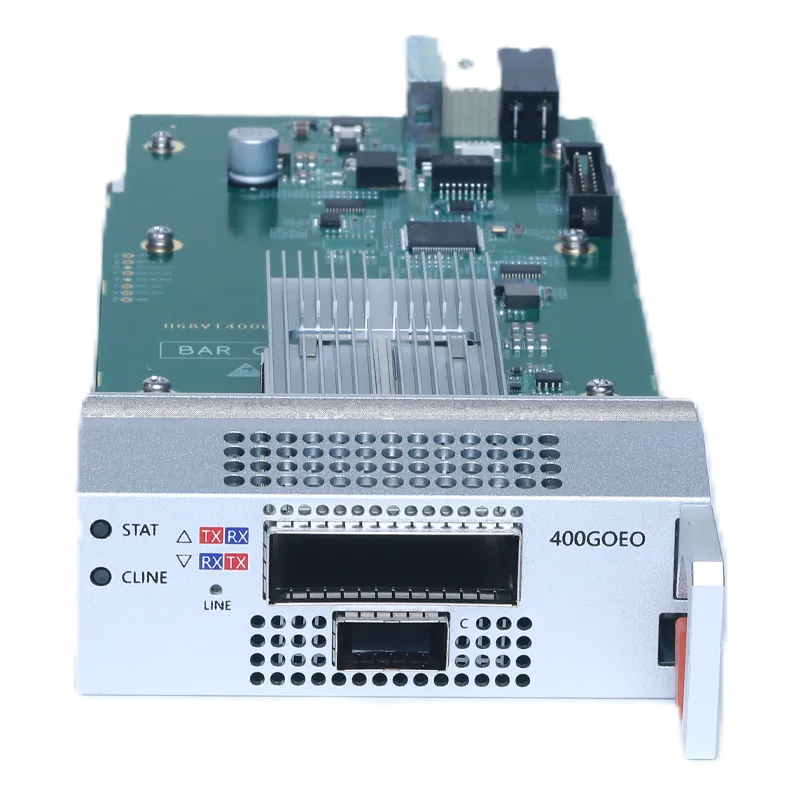

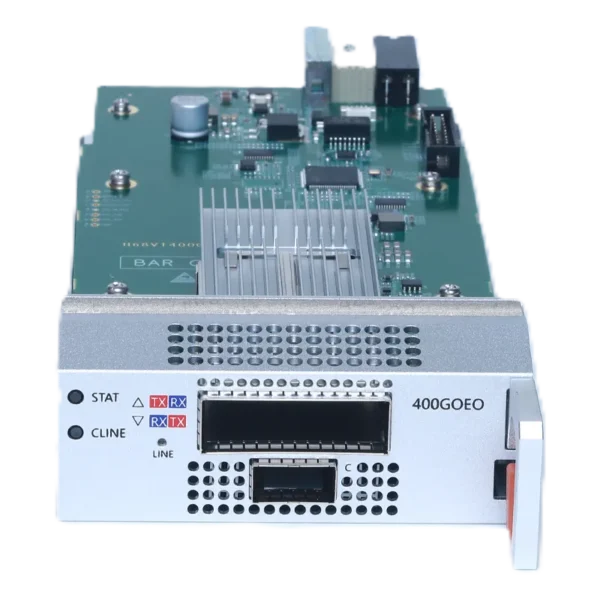

The HT6800-400GOEO is a 400G OEO (Optical-Electrical-Optical) Converter Transponder for the HT6800 DCI DWDM Optical Transmission System. The client side supports 1×400GE and 4×100GE service access via QSFP-DD slots, while the line side features a CFP2 slot for 1×400GE DWDM output. Supports 100GE, 100GE FlexE, OTU4, and 400GE service types with FEC enablement. Occupies 1 slot in the HT6800 chassis.
Supports single-channel 400G high-speed DWDM data transfer via CFP2 coherent module on the line side, enabling ultra-high capacity DCI links.
Client side supports 1×400GE and 4×100GE via QSFP-DD, accommodating 100GE, 100GE FlexE, OTU4, and 400GE service types with FEC enabled.
Supports 191.3–196.1 THz with adjustable wavelengths at 50/75/100/150 GHz intervals for seamless integration into any DWDM network.
Supports DDM digital diagnosis, OSNR monitoring, and real-time BER monitoring for proactive performance management and fault detection.
Supports ALS and LFP functions, plus transparent local fault and remote fault transmission, ensuring comprehensive optical link protection.
Full LLDP and RMON statistics, delay measurement, hardware/software loopback test, FEC enablement, and IDLE stream insertion for complete manageability.
| Performance Parameters | |
| Model | HT6800-400GOEO |
| Client-side Bandwidth | 1×400 Gbps / 4×100 Gbps (QSFP-DD) |
| Line-side Bandwidth | 1×400 Gbps (CFP2 DWDM) |
| Service Type |
100GE
100GE FlexE
OTU4
400GE
|
| QSFP-DD Interface | Supports DR, LR, and other interface types |
| Chassis Slot Usage | 1 Slot (HT6800 series chassis) |
| Power Dissipation | ≤75W |
| Optical Parameters | |
| Center Wavelength | 191.3 ~ 196.1 THz |
| Wavelength Grid | 50 GHz / 75 GHz / 100 GHz / 150 GHz (adjustable) |
| Output Power | Adjustable range depending on DCO module type |
| Supported Functions | |
| FEC | Supported (enablement configurable) |
| DDM Monitoring | Digital diagnosis, OSNR monitoring, real-time BER monitoring |
| RMON | Packet/byte count, port utilization, CRC errors, error packets |
| LLDP | Supported |
| Delay Measurement | Supported |
| ALS / LFP | Supported |
| Fault Transmission | Local fault and remote fault transparent transmission |
| Loopback Test | Port hardware and software loop test |
| IDLE Stream | IDLE stream insertion supported |
OSNR tolerance values for supported modulation formats on the HT6800-400GOEO line card.
| Modulation Format | Line Rate | OSNR Tolerance |
|---|---|---|
| DP-QPSK-OFEC | 100G | 12.5 dB |
| DP-QPSK-OFEC | 200G | 14 dB |
| 16QAM-OFEC | 400G | 20 dB |
| Physical Dimensions | |
| Width | 107 mm |
| Depth | 254 mm |
| Height | 42 mm |
| Environmental Specifications | |
| Working Temperature | -5°C ~ 45°C |
| Storage Temperature | -40°C ~ 80°C |
| Relative Humidity | 5% ~ 95% (no condensation) |
| Power | |
| Max Power Dissipation | ≤75W |
| Interface Specifications | |
| Client Side | 1×QSFP-DD (400 Gbps) — incoherent module; supports DR, LR etc. |
| Client Expansion | 4×100 Gbps breakout via QSFP-DD |
| Line Side | 1×CFP2 400Gbps DWDM coherent module |
| LED Indicators | STAT (status), CLINE indicator, TX/RX (LINE port), TX/RX (C port) |
| Compatibility | |
| Compatible Chassis | HT6800 series (supports mixed insertion of electrical/optical layer cards) |
| Compatible Modules | HT6800-OA, HT6800-OLA, HT6800-OP1/OP2, HT6800-WSS09, HT6800-OTDR, HT6800-OCM, HT6800-TFFxxxx |
