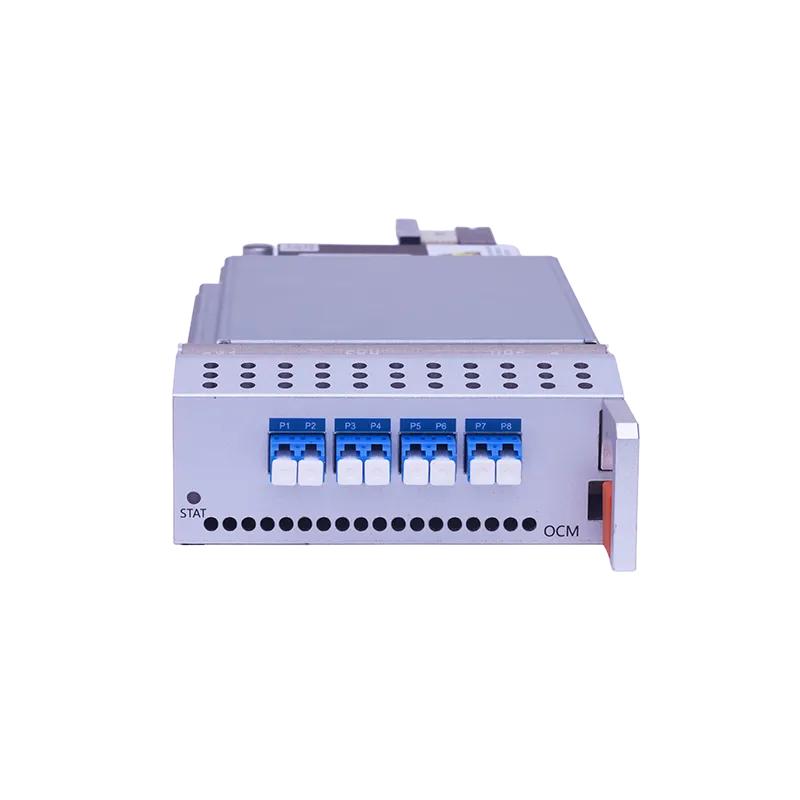

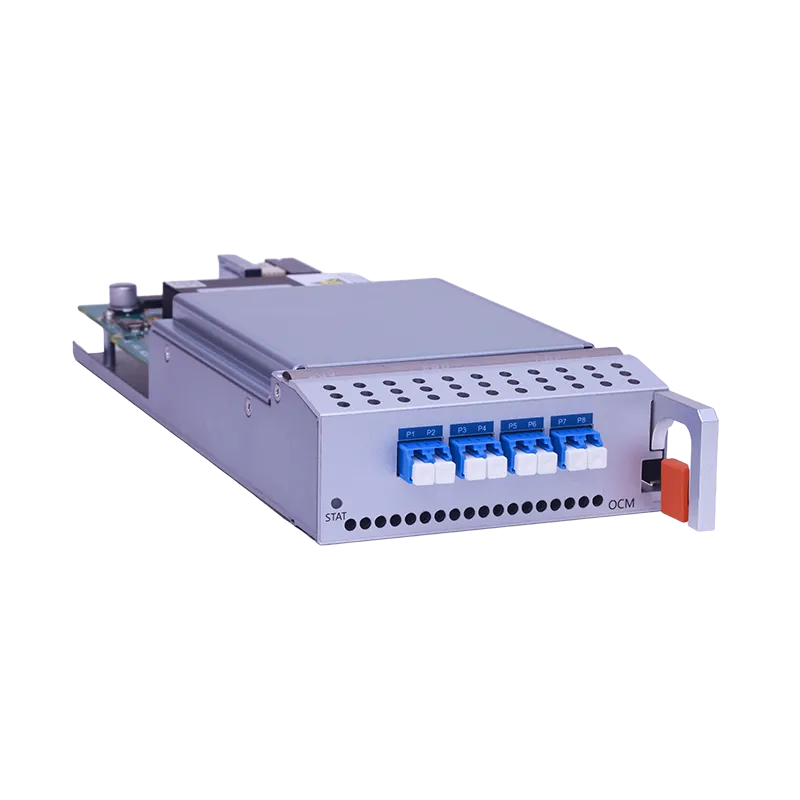

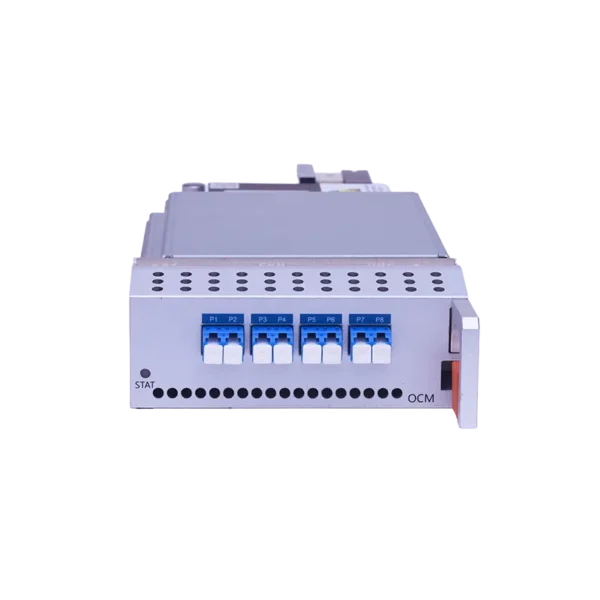

Provides 8 independent LC optical input ports (P1–P8) for simultaneous multi-point DWDM channel power monitoring across the optical network.
Supports monitoring across 50 GHz, 75 GHz, and 100 GHz DWDM channel grids within the 1528–1567 nm C-band wavelength range.
Full all-channel scan completes in ≤1 second with a switch time of ≤30 ms per port, enabling real-time dynamic monitoring of live traffic.
Power measurement accuracy ≤±1 dB, relative power accuracy ±0.8 dB, optical accuracy 0.1 dB, and wavelength accuracy ±0.1 nm.
Supports 8-channel automatic polling detection with real-time wavelength occupancy monitoring and any-port selective power measurement.
Supports hot-plug insertion without service interruption and online real-time monitoring for zero-impact network management and troubleshooting.
| Optical Parameters | |
| Operating Wavelength | 1528 nm ~ 1567 nm (C-band) |
| Channel Spacing |
50 GHz
75 GHz
100 GHz
|
| Channel Power Range | -40 dBm ~ -10 dBm |
| Power Measurement Accuracy | ≤±1 dB |
| Relative Power Accuracy | ±0.8 dB |
| Optical Accuracy | 0.1 dB |
| Wavelength Accuracy | ±0.1 nm |
| Wavelength Resolution | 0.02 nm |
| Timing Parameters | |
| OCM Scan Time (All Channels) | ≤1 s |
| Switch Time (Maximum) | 30 ms |
| Scan Frequency | ≥1 Hz |
| Interface & Functions | |
| Optical Ports | 8 ports (P1–P8), LC connector |
| Hot Plug | Supported |
| Online Real-time Monitoring | Supported |
| Channel Wavelength Occupancy | Real-time monitoring supported |
| Port Selection | Any port selectable for optical power measurement |
| Polling Detection | 8-channel automatic polling supported |
| Chassis Slot Usage | 1 Slot (HT6800 series chassis) |
| Physical Dimensions | |
| Width | 107 mm |
| Depth | 254 mm |
| Height | 42 mm |
| Environmental Specifications | |
| Working Temperature | -10°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% (no condensation) |
| Power | |
| Max Power Dissipation | ≤15W |
