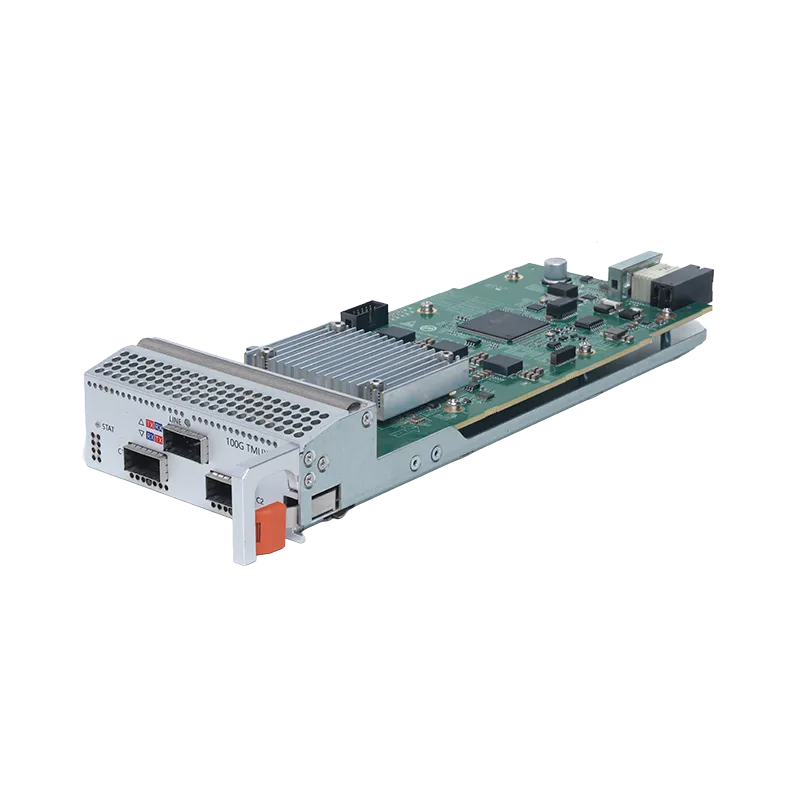

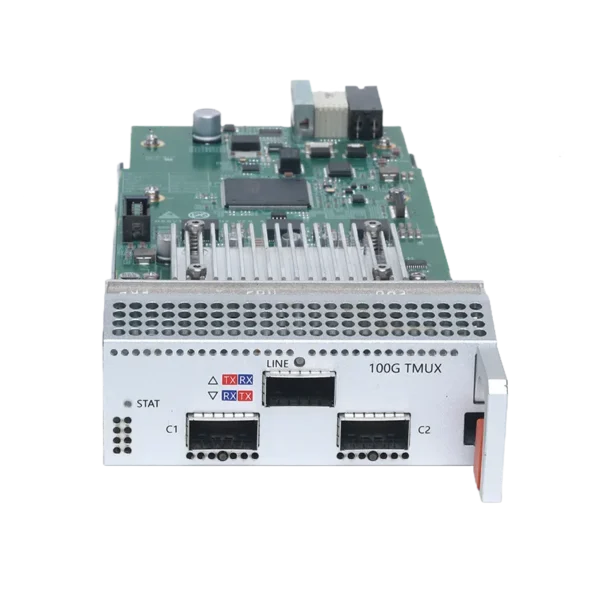

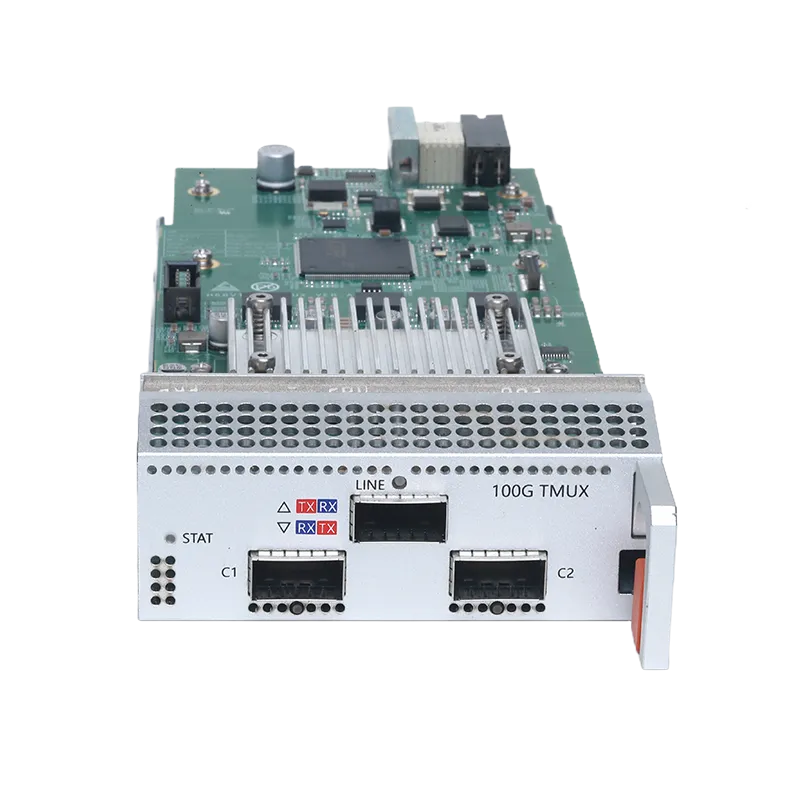

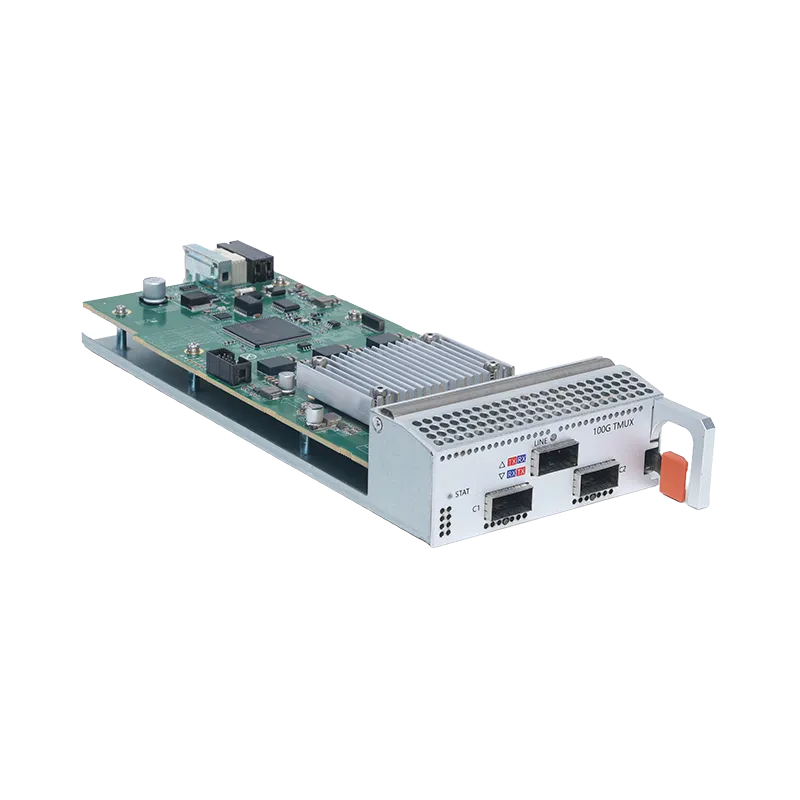

The HT6800-100GTMUX is a high-performance 100G Muxponder card designed for the HT6800 DCI DWDM Optical Transmission System. Supporting 2×50GE client-side access and a 1×100GE line-side QSFP28 output, it enables single-channel 100G high-speed data transfer with comprehensive monitoring and protection features. Occupies 1 slot in the HT6800 chassis.
Supports single-channel 100G high-speed data transfer with 2×50GE client-side and 1×100GE line-side QSFP28 interface.
Activates Forward Error Correction (FEC) for 100GE and other service access, ensuring high reliability over long-haul links.
Supports DDM digital diagnosis, OSNR monitoring, and real-time bit error rate monitoring for proactive network management.
Ethernet RMON monitoring including packet/byte count, port utilization, CRC errors, and supports LLDP and delay measurement.
Supports Automatic Laser Shutdown (ALS) and Link Fault Propagation (LFP) for comprehensive optical link protection.
Supports port hardware and software loop test for flexible commissioning and troubleshooting of optical transmission links.
| Performance Parameters | |
| Model | HT6800-100GTMUX |
| Client-side Bandwidth | 2×50 Gbps |
| Line-side Bandwidth | 1×100 Gbps |
| Service Type | 100GE and other service access; activates FEC |
| Chassis Slot Usage | 1 Slot (HT6800 series chassis) |
| Power Dissipation | ≤45W |
| Supported Functions | |
| FEC | Supported (Activation FEC) |
| DDM Monitoring | Digital diagnosis, OSNR monitoring, real-time BER monitoring |
| RMON | Packet/byte count, port utilization, CRC errors, error packets |
| LLDP | Supported |
| Delay Measurement | Supported |
| ALS | Automatic Laser Shutdown — Supported |
| LFP | Link Fault Propagation — Supported |
| Loopback Test | Port hardware and software loop test |
| Physical Dimensions | |
| Width | 107 mm |
| Depth | 254 mm |
| Height | 42 mm |
| Environmental Specifications | |
| Working Temperature | -5°C ~ 45°C |
| Storage Temperature | -40°C ~ 80°C |
| Relative Humidity | 5% ~ 95% (no condensation) |
| Power | |
| Max Power Dissipation | ≤45W |
| Interface Specifications | |
| Client Side | 2×50 Gbps QSFP28 |
| Line Side | 1×QSFP28 100Gbps module |

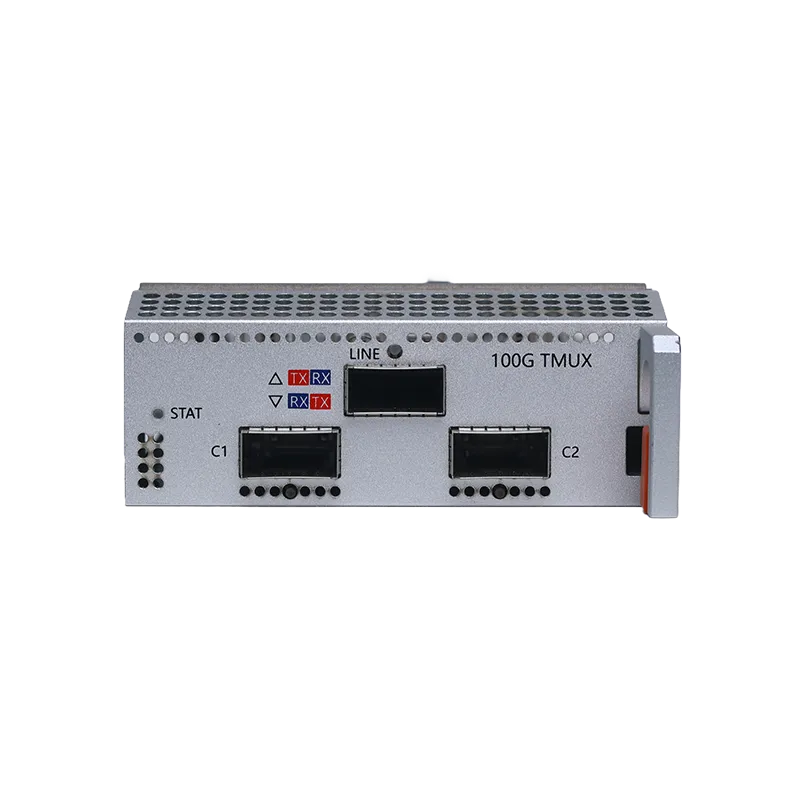

| LED Indicators | STAT (status), LINE indicator, TX/RX per port (C1, C2) |
| Compatibility | |
| Compatible Chassis | HT6800 series (supports mixed insertion of electrical/optical layer cards) |
| Compatible Modules | HT6800-OA, HT6800-OLA, HT6800-OP1/OP2, HT6800-WSS09, HT6800-OTDR, HT6800-OCM, HT6800-TFFxxxx |
