In today’s era of rapid information development, the efficiency and flexibility of communication networks are crucial. As a key technology in optical communication and networking, WSS is playing an increasingly important role. It not only enhances network performance but also opens up new possibilities for various application scenarios. Next, let’s delve into the definition of WSS and its diverse applications.
1. WSS in the field of optical communication

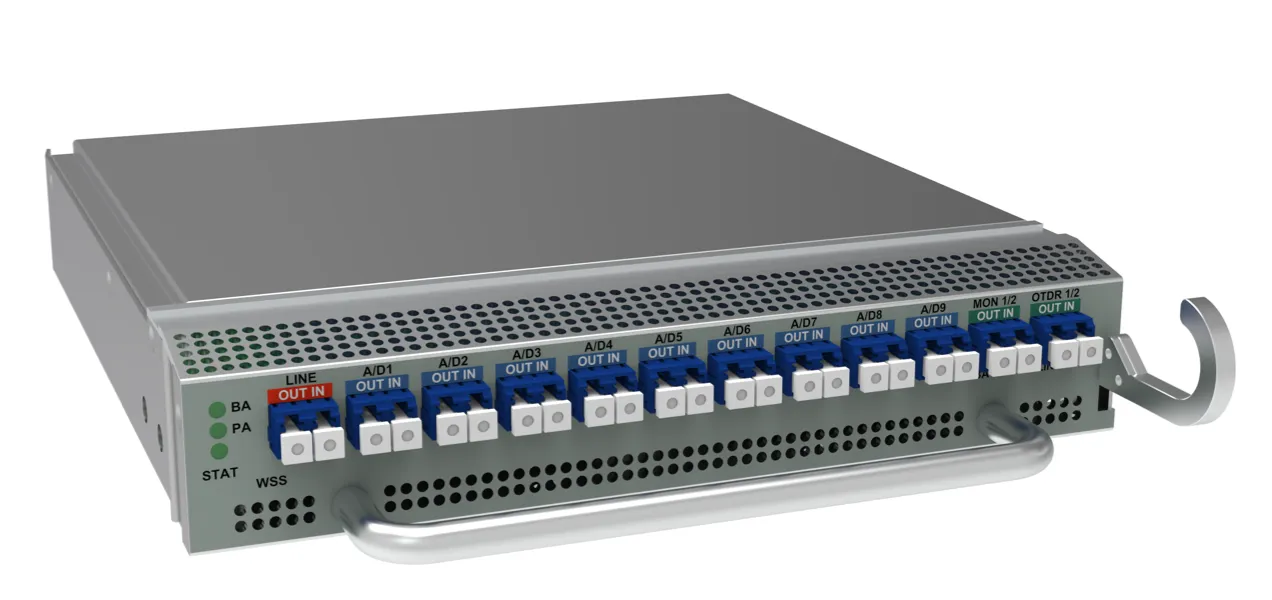

In optical communication, WSS refers to a wavelength selective switch (Wavelength Selective Switch). It is an extremely important optical device that can flexibly route and exchange optical signals of different wavelengths. Its core working principle is based on the process of wavelength demultiplexing, independent routing, and re-multiplexing of optical signals.
Specifically, when a composite optical signal containing multiple wavelengths is input into the WSS, it first undergoes spatial separation of different wavelength signals through internal components such as diffraction gratings, achieving de-multiplexing. Then, for each separated wavelength, the WSS uses specific control mechanisms, such as a mirror array based on MEMS or a liquid crystal spatial light modulator, to guide each wavelength independently to different output ports according to predefined routing rules, thus completing the wavelength selection process. Finally, at the selected output ports, these wavelength signals are recombined into a single composite optical signal and output.
The precise control of optical signal wavelengths makes WSS a core component in dense wavelength division multiplexing (DWDM) systems and reconfigurable optical add/drop multiplexers (ROADM). In DWDM systems, multiple optical signals of different wavelengths are transmitted simultaneously in a single fiber. WSS can flexibly extract or insert specific wavelength signals, significantly enhancing the efficiency of fiber resource utilization. For example, in long-distance backbone networks, it is necessary to transmit and schedule service signals between nodes in different cities using specific wavelengths. WSS can precisely manage the addition and removal of these wavelengths, ensuring that data is accurately and reliably delivered to the target nodes.
2. Application of WSS in optical communication network
1) Long-haul backbone network: In the long-haul backbone optical fiber network that spans cities, countries, and even continents, WSS plays a crucial role. Given the massive data transmission demands of the backbone network and the complex, ever-changing service requirements among different nodes, WSS, as a core component of ROADM, can flexibly schedule optical signals of various wavelengths based on real-time service needs. For instance, when service traffic in a specific area surges, WSS can swiftly allocate additional wavelength resources to that area, ensuring high-speed and stable data transmission. Additionally, in the event of network failures, WSS can quickly switch wavelength routes, enabling automatic service recovery and ensuring the reliability and stability of the backbone network.
2) Metropolitan Area Network (MAN): The MAN needs to connect numerous enterprises, institutions, and users, with a wide range of services including voice, data, and video. WSS enables flexible optical layer networking in the MAN, supporting rapid access and efficient transmission of various services. For example, for high-speed dedicated lines required by enterprise users, WSS can provide exclusive high-bandwidth channels through wavelength allocation. For real-time services like video surveillance, WSS ensures stable transmission of relevant wavelength signals, reducing latency and lag, thereby enhancing user experience.
3) Data Center Interconnection: With the advancement of cloud computing and big data, the volume of data exchange between data centers has surged. WSS enables high-speed, large-capacity connections between multiple data centers. By managing wavelengths with precision and flexibility, WSS can meet the diverse traffic needs of different services between data centers, such as real-time data backups and virtual machine migrations. Additionally, its rapid wavelength switching capability ensures efficient network operation by handling sudden changes in business activities between data centers.
WSS, whether in the field of optical communication or information technology, plays an indispensable role in numerous critical application scenarios thanks to its unique features and advantages. As technology continues to evolve and innovate, the application scope of WSS will further expand, injecting new vitality into the development of communication networks and information technology.
