EDFA amplifier and SOA amplifier are the two most widely used amplifiers in optical transmission. This article explains the difference between these two amplifiers

1. Performance features compete

1) Gain characteristics

• EDFA amplifier: Within its operating wavelength range (1530-1565nm), it can provide a high and relatively flat gain, typically ranging from 10 to 40dB. This high-gain capability allows the EDFA to effectively compensate for signal loss during long-distance optical communication, ensuring that the signal maintains sufficient strength even after long-distance transmission. For example, in transoceanic submarine cable communications, EDFA amplifiers are deployed at regular intervals to amplify the signal, ensuring it can travel thousands of kilometers.
• SOA Amplifier: While it can also provide a certain level of gain, the gain typically ranges from 10 to 30 dB, with a relatively broad gain spectrum. However, the gain of SOA is sensitive to the polarization state of the optical signal, and different polarization states may result in varying gains within the SOA, which can pose challenges in optical communication systems that require strict polarization state control. In scenarios where flexible amplification of signals at different wavelengths is required, the broad gain spectrum of SOA becomes an advantage.

2) Noise characteristics

• EDFA amplifier: It features a low noise figure, ideally approaching the quantum limit. For instance, with a 980nm pump, the noise figure can be as low as 3.2-3.4dB. This allows the EDFA to amplify optical signals with minimal additional noise, effectively maintaining signal quality. In long-distance, high-capacity wavelength division multiplexing (WDM) systems, low noise characteristics are particularly crucial. If too much noise is introduced by the amplifier, it will accumulate as the signal travels through multiple stages of amplification, ultimately severely impacting the transmission quality and reliability of the signal.
• SOA Amplifier: Compared to EDFA, the noise figure is relatively higher. This is mainly due to the inherent properties of semiconductor materials and the spontaneous radiation generated during operation. Higher noise levels can reduce the signal-to-noise ratio, limiting SOA’s application in long-distance, high-speed optical communication systems with stringent noise requirements. However, in short-distance optical communication scenarios where noise tolerance is less critical and cost and integration are more important, SOA can still perform effectively.

3) Response speed

• EDFA amplifiers have a relatively slow response time, typically in the microsecond (μs) range. This is because the population inversion process in the gain medium of EDFA, erbium-doped fiber, involves atomic energy level transitions, which are relatively slow. While the response speed of EDFA meets the requirements in most traditional optical communication applications, it may be limited in emerging scenarios that require rapid signal changes.
• SOA Amplifier: With an extremely fast response speed, the response time can reach the nanosecond (ns) level. This is due to the rapid interaction between electrons and photons in semiconductor materials. The fast response speed gives SOA a significant advantage in high-speed optical signal processing, optical switches, and optical signal regeneration. For example, in high-speed optical packet switching networks, where optical signals need to be quickly switched and processed, SOA can rapidly respond to changes in the signal, enabling efficient data exchange and processing.

2. The application scenarios are different

1) EDFA amplifier: the backbone of long distance communication

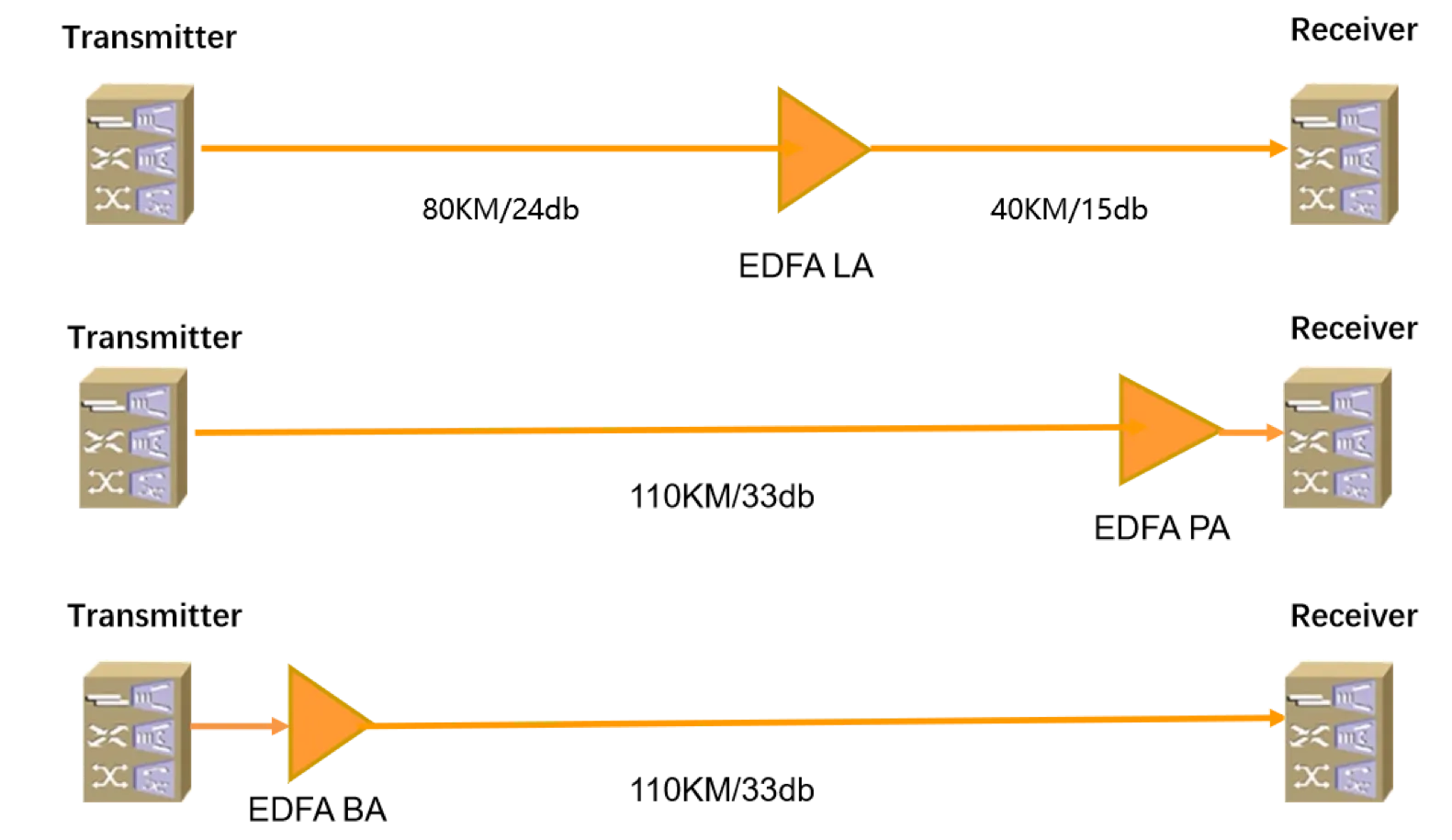

• Long-haul backbone network: In long-haul optical fiber networks spanning cities, countries, and even continents, EDFA amplifiers are widely used. Thanks to their high gain, low noise, and polarization insensitivity, these amplifiers effectively compensate for signal attenuation during long-distance transmission, ensuring that the signal maintains sufficient strength and quality after traveling thousands of kilometers, thus meeting the demands for high-speed and reliable data transmission. For example, in the construction of China’s national backbone network, EDFA amplifiers are a key component in ensuring network smoothness.
• In a Wavelength Division Multiplexing (WDM) system, multiple optical signals of different wavelengths are transmitted simultaneously through a single fiber. The EDFA can amplify these signals simultaneously, and its good gain flatness ensures consistent amplification across all wavelengths, preventing any from becoming too strong or too weak. This enhances the transmission capacity and efficiency of the fiber. In high-speed interconnections between large data centers, WDM technology based on EDFA is commonly used to achieve rapid data transmission.

2) SOA Amplifier: The darling of short range and integrated applications

• In short-distance optical communication scenarios, such as metropolitan area networks (MANs) and local area networks (LANs), SOA amplifiers have found applications due to their fast response time, compact size, and cost-effectiveness. For instance, in scenarios like internal network connections within corporate campuses and high-speed interconnections between servers within data centers, SOA can rapidly amplify and process optical signals, meeting the demands for short-distance, high-speed data transmission.
• Optical Signal Processing and Integrated Optics: Thanks to the fast response of SOA and its ease of integration with other semiconductor optoelectronic devices, it plays a crucial role in optical signal processing. For instance, in optical switches, modulators, and wavelength converters, SOA is often the core component, enabling rapid control and processing of optical signals. Additionally, in the design and manufacturing of integrated optical chips, SOA can be integrated with other optical components on the same chip, creating powerful and compact optical communication modules that support the miniaturization and integration of future optical communication systems.

EDFA, amplifiers, and SOA amplifiers differ significantly in their working principles, performance characteristics, and application scenarios. In the design and construction of optical communication systems, it is essential to select the appropriate amplifier type based on specific requirements, such as transmission distance, signal rate, cost constraints, and system complexity, to build an efficient, stable, and cost-effective optical communication network. As optical communication technology continues to advance, these two types of amplifiers are also evolving and improving. In the future, they will continue to play a crucial role in various application fields and may demonstrate greater potential in emerging scenarios.
