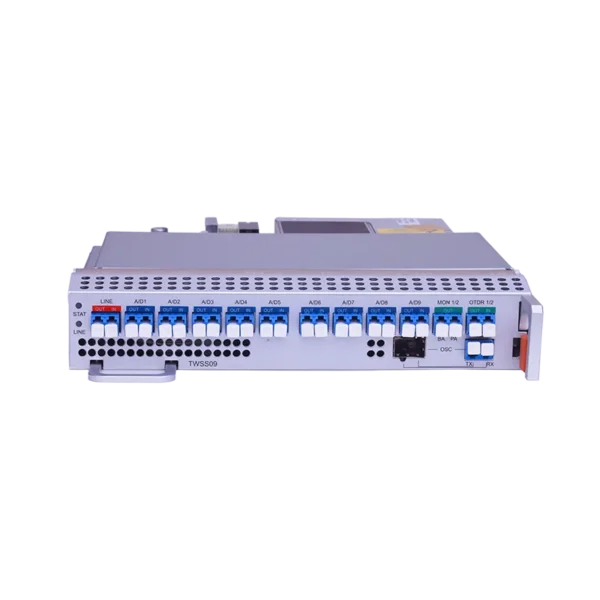

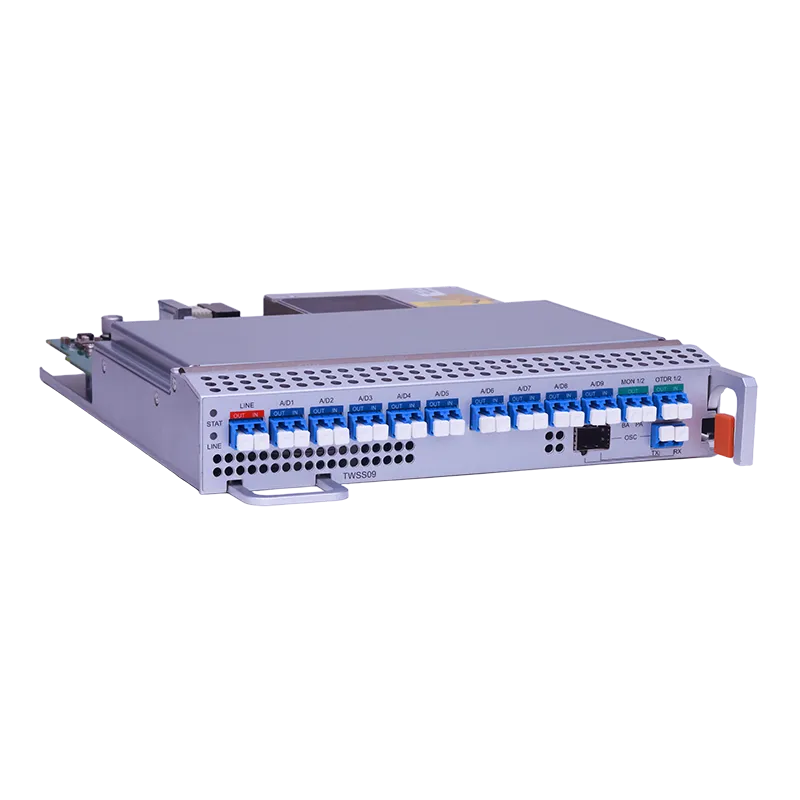

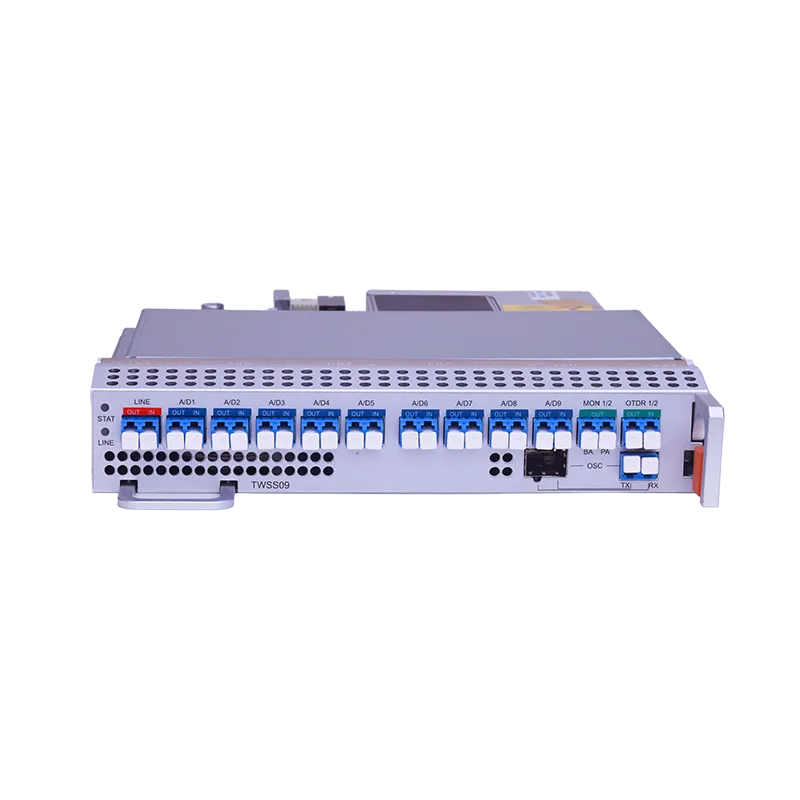

The HT6800-WSS09 is a Twin 1×9 All-Optical Wavelength Selective Switch (WSS) card for the HT6800 DCI DWDM Optical Transmission System. Supporting 96 DWDM channels on the ITU-T 50 GHz C-band grid across 9 independently controlled add/drop ports, it enables fully reconfigurable ROADM nodes with colorless and directionless operation. Features integrated BA+PA amplifiers, MON, OSC, and OTDR interfaces. Occupies 2 slots.
Dynamically selects any of 96 DWDM channels across 9 independent add/drop ports, enabling full ROADM functionality at each branching node.
Supports colorless and directionless ROADM operation, enabling any wavelength to be routed to any port without physical reconfiguration.
Per-channel integrated VOA with 0–15 dB dynamic range and 0.1 dB resolution, enabling precise per-channel power equalization across all ports.
Built-in Booster Amplifier (BA) and Pre-Amplifier (PA) ports eliminate the need for external EDFA modules, reducing chassis slot usage and cost.
Supports OSC 1510 nm for remote management, MON ports for optical power monitoring, and OTDR 1625 nm for fiber fault detection.
Port switching response ≤3000 ms, with ≤1400 ms for <2 dB steps and ≤2000 ms for <15 dB steps, enabling rapid network reconfiguration.
| Optical Parameters | |
| Channel Wavelength Range | 1528.773 nm ~ 1566.73 nm (C-band) |
| Channel Count | 96 DWDM channels (ITU-T 50 GHz C-band grid) |
| Channel Spacing | 50 GHz / 100 GHz |
| Channel Spectral Width | N×12.5 GHz (4 ≤ N ≤ 12) |
| Channel Passband | ≥0.3 nm |
| Insertion Loss Flatness | ≤0.5 dB |
| Insertion Loss (Add 1–9 → BA) | Typ: 6.3 dB / Max: 7.5 dB / Worst: 8.1 dB |
| Insertion Loss (PA → Drop 1–9) | Typ: 6.3 dB / Max: 7.5 dB / Worst: 8.1 dB |
| Adjacent Channel Separation | ≥25 dB |
| Non-Adjacent Channel Separation | ≥35 dB |
| Polarization Dependent Loss | <0.15 dB |
| Return Loss | >45 dBm |
| Directivity | >50 dB |
| Switching Parameters | |
| Response Time (<2 dB step) | ≤1400 ms |
| Response Time (<15 dB step) | ≤2000 ms |
| Port Switching Time | ≤3000 ms |
| Interface | |
| Add/Drop Ports | 9 ports (A/D1–A/D9), independent wavelength selection |
| LINE Port | 1× main line IN/OUT |
| MON Ports | MON 1/2 — optical power monitoring |
| OTDR Ports | OTDR 1/2 — 1625 nm fiber fault detection |
| OSC Port | 1510 nm — remote network management |
| Amplifier Ports | BA (Booster) + PA (Pre-Amp) — integrated |
| Hot Plug | Supported |
| Chassis Slot Usage | 2 Slots (HT6800 series chassis) |
| VOA Specifications | |
| VOA Dynamic Range | 0 ~ 15 dB |
| VOA Set Resolution | 0.1 dB |
| VOA Accuracy (0–10 dB damping) | ±1 dB |
| VOA Accuracy (>10 dB damping) | ±1.5 dB |
| Directivity | >50 dB |
| VOA Control | |
| Per-Channel Control | Independent VOA per channel per port |
| Control Interface | Remote management via OSC / network management system |
| Power Equalization | Supports per-channel optical power leveling across all 9 ports |
| Physical Dimensions | |
| Width | 216 mm |
| Depth | 254 mm |
| Height | 42 mm |
| Environmental Specifications | |
| Working Temperature | -10°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% (no condensation) |
| Power | |
| Max Power Dissipation | ≤80W |
