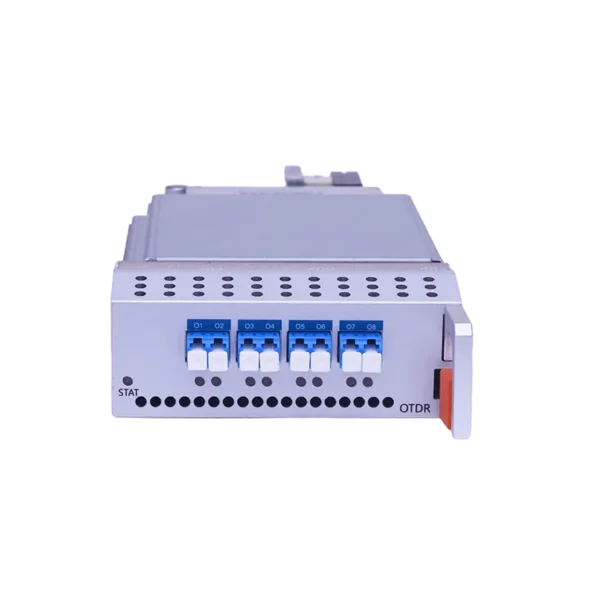

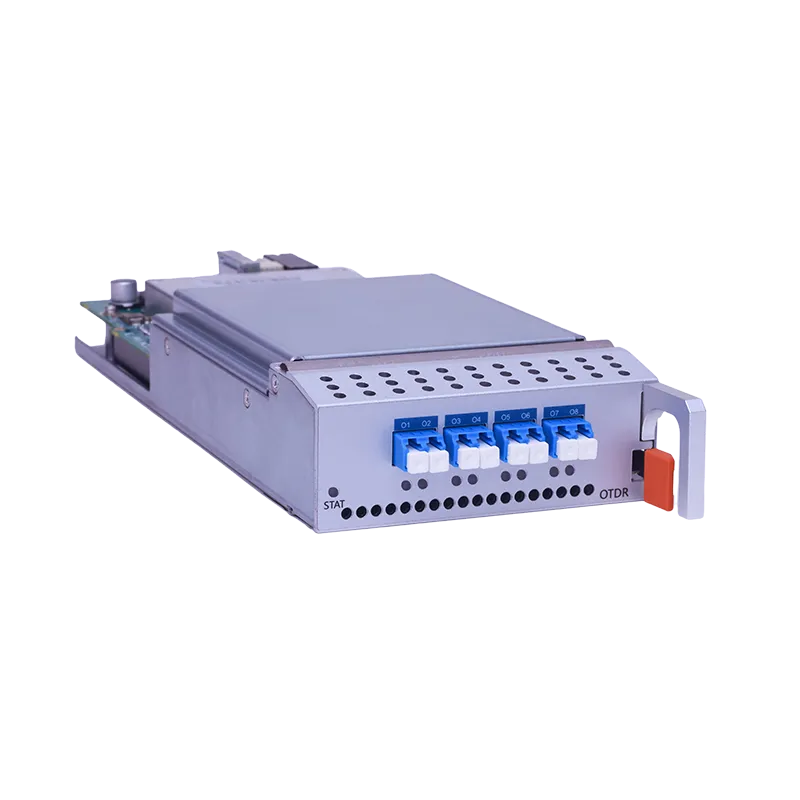

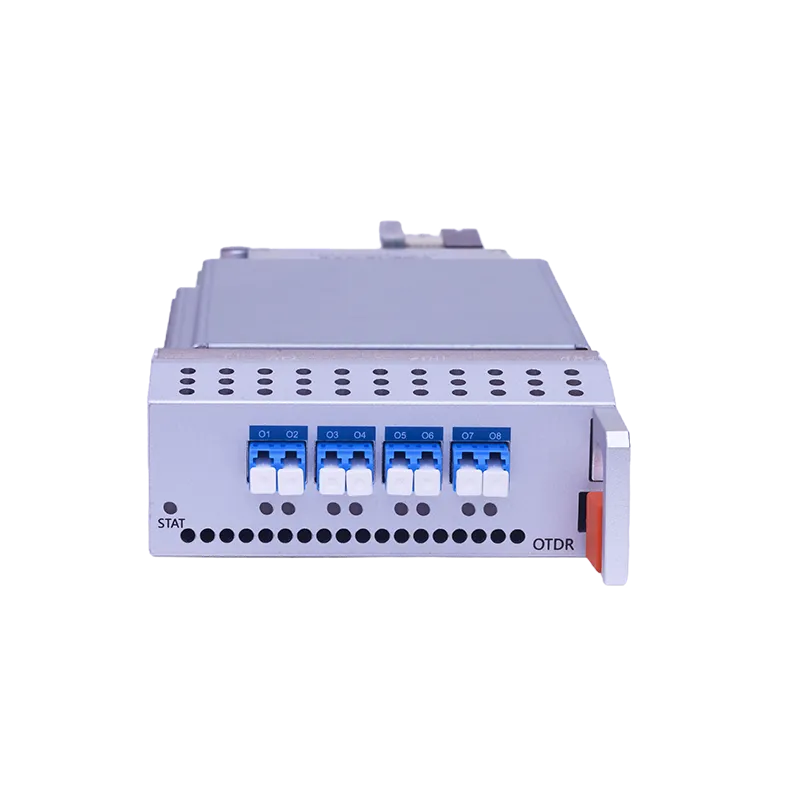

The HT6800-OTDR is a high-performance Optical Time Domain Reflectometer monitoring card for the HT6800 DCI DWDM Optical Transmission System. Providing 24/7 automatic fiber monitoring across 8 ports with up to 130 km detection range and ≥36 dB dynamic range, it delivers real-time fault detection, location, and alarm reporting. Supports online monitoring and GIS-based test result display. Occupies 1 slot.
OTDR dynamic range exceeding 36 dB enables detection of weak reflections over long fiber spans, supporting cable monitoring up to 130 km.
Supports 8 or 12-direction fiber optic polling monitoring via 8 independent LC ports (O1–O8), enabling multi-span network coverage in a single slot.
Provides continuous real-time fiber monitoring with automatic fault detection, alarm reporting, and location accuracy of ≤20 m without interrupting traffic.
Supports operating wavelengths of 1510 nm and 1625 nm (±10 nm), covering both standard and out-of-band OTDR measurement requirements.
Supports displaying test line results on GIS mapping interface and saving test results for historical analysis, enabling visual network asset management.
Loss detection accuracy ±0.5 dB, distance accuracy ≤20 m, event blind spot ≤10 m, and attenuation blind spot ≤20 m for precise fault location.
| OTDR Parameters | |
| Operating Wavelength | 1510 nm / 1625 nm (±10 nm) |
| Dynamic Range | ≥36 dB |
| Pulse Width Range | 0.1 ns ~ 20 µs |
| Maximum Detection Distance | ≥130 km |
| Loss Detection Accuracy | ±0.5 dB |
| Distance Detection Accuracy | ≤20 m |
| Sampling Precision | 0.05 m ~ 8 m |
| Event Blind Spot | ≤10 m |
| Attenuation Blind Spot | ≤20 m |
| Linearity | ±0.05 dB/dB |
| Max Output Optical Power | ≥+17 dBm |
| Interface & Functions | |
| Monitoring Ports | 8 ports (O1–O8), LC connector |
| Polling Directions | 8 or 12-direction fiber optic polling |
| Online Monitoring | 24/7 real-time monitoring supported |
| GIS Display | Test line results displayable on GIS map |
| Result Storage | Test results saving supported |
| Chassis Slot Usage | 1 Slot (HT6800 series chassis) |
| Physical Dimensions | |
| Width | 107 mm |
| Depth | 254 mm |
| Height | 42 mm |
| Environmental Specifications | |
| Working Temperature | -10°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% (no condensation) |
| Power | |
| Max Power Dissipation | ≤15W |
