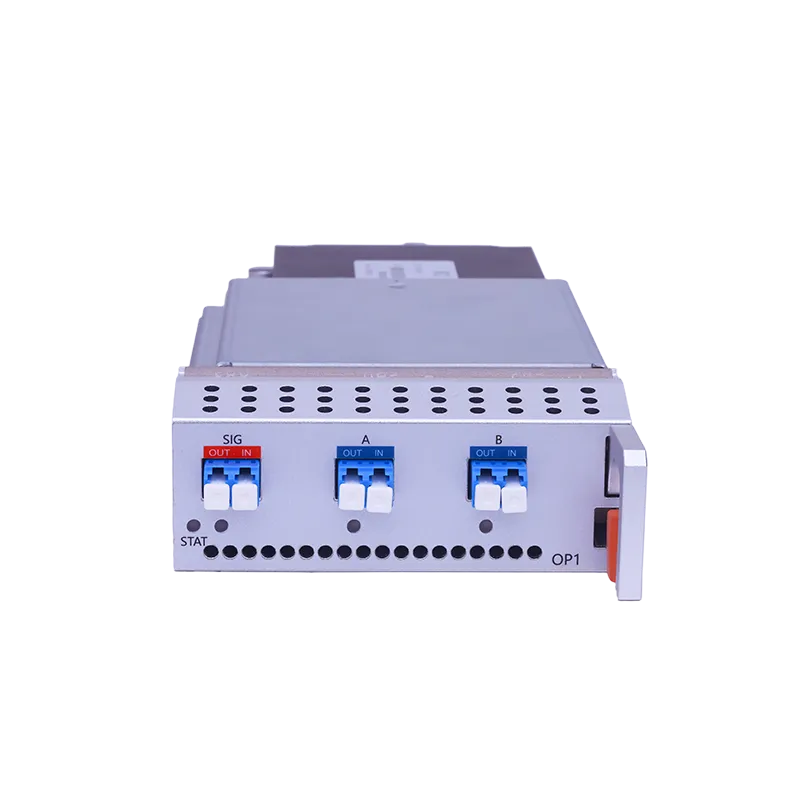

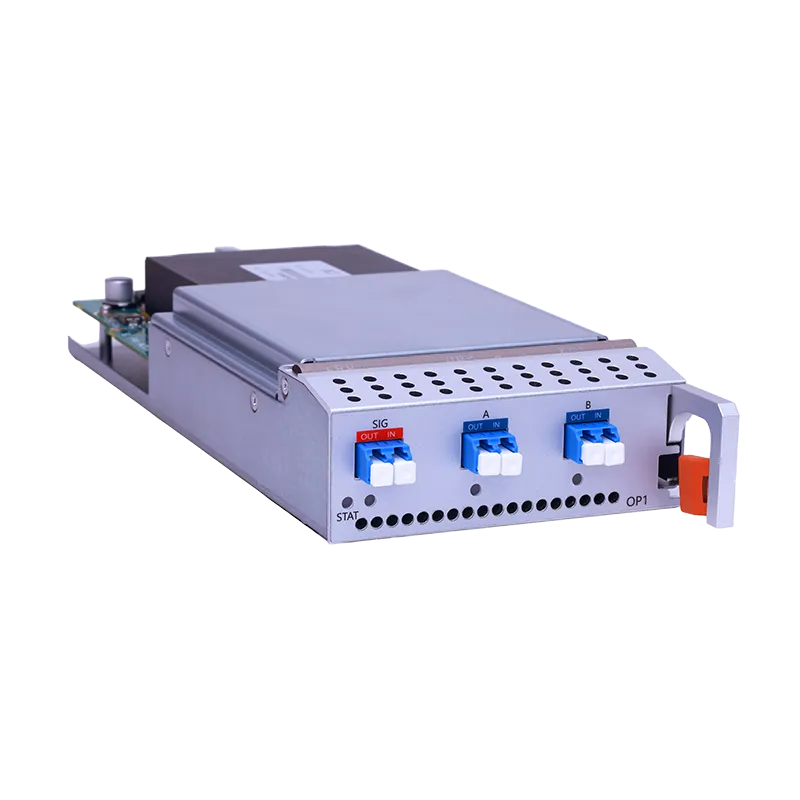

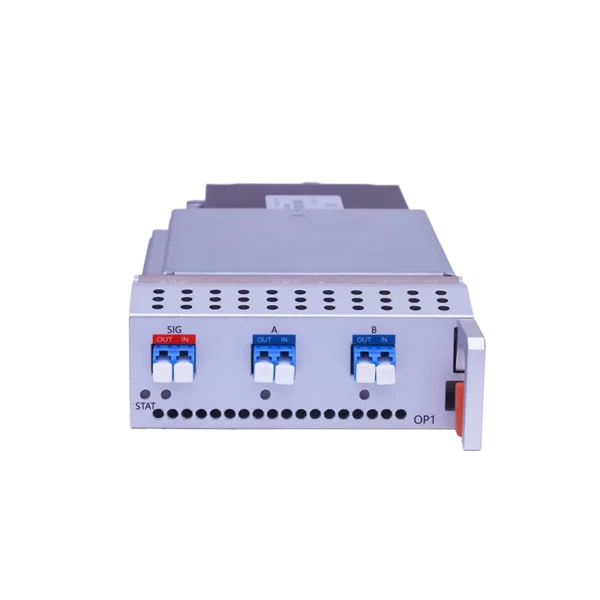

The HT6800-OP1 is a single-channel OLP (Optical Line Protection) card for the HT6800 DCI DWDM Optical Transmission System. Using dynamic synchronous optical switching technology, it provides 1+1 protection with sub-20ms switchover when fiber breaks or signal degradation occurs. Features SIG, A, and B ports. Occupies 1 slot in the HT6800 chassis.
Automatic primary-to-backup route switching completes in <15 ms, reducing fiber failure recovery time from hours to milliseconds.
Full 1+1 optical line protection with dedicated backup path, ensuring uninterrupted communication when fiber breaks or equipment failures occur.
Supports both automatic mode (threshold-based) and manual mode (command-based), with configurable recovery and non-recovery options.
Supports user-defined switching threshold settings with optical power accuracy of ±0.25 dB and detection resolution of ±0.01 dB.
Supports automatic return to primary path once the main fiber is restored, minimizing manual intervention in mission-critical networks.
Low insertion loss (Tx ≤4 dB, Rx ≤1.2 dB), high return loss ≥55 dB, and low polarization dependent loss ≤0.05 dB for transparent operation.
| Optical Parameters | |
| Operating Wavelength | 1310 ±50 nm / 1550 ±50 nm |
| Optical Power Range | ≥-23 dBm ~ -50 dBm |
| Optical Power Accuracy | ±0.25 dB |
| Power Detection Resolution | ±0.01 dB |
| Return Loss | ≥55 dB |
| Polarization Dependent Loss | ≤0.05 dB |
| Wavelength Dependent Loss | ≤0.1 dB |
| Insertion Loss | Tx ≤4 dB / Rx ≤1.2 dB |
| Switching Parameters | |
| Switching Speed | <15 ms |
| Switching Modes | Automatic (threshold-based) / Manual (command-based) |
| Recovery Modes | Auto return to home / Non-recovery (stay on backup) |
| Threshold Setting | User-configurable switching threshold |
| Protection Configuration | |
| Protection Type |
OLP 1+1
OLP 1:1
OLP 1+3
|
| Channels | 1× OLP 1+1 protection channel (SIG, A, B ports) |
| Chassis Slot Usage | 1 Slot (HT6800 series chassis) |
| Physical Dimensions | |
| Width | 107 mm |
| Depth | 254 mm |
| Height | 42 mm |
| Environmental Specifications | |
| Working Temperature | -10°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% (no condensation) |
| Power | |
| Max Power Dissipation | ≤15W |
