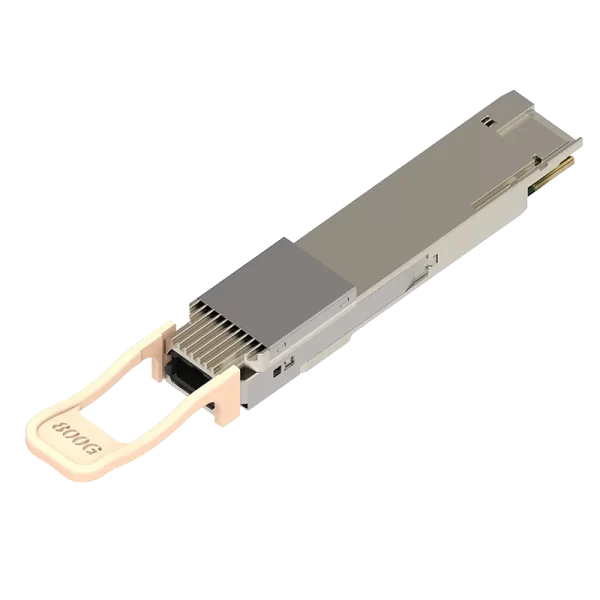

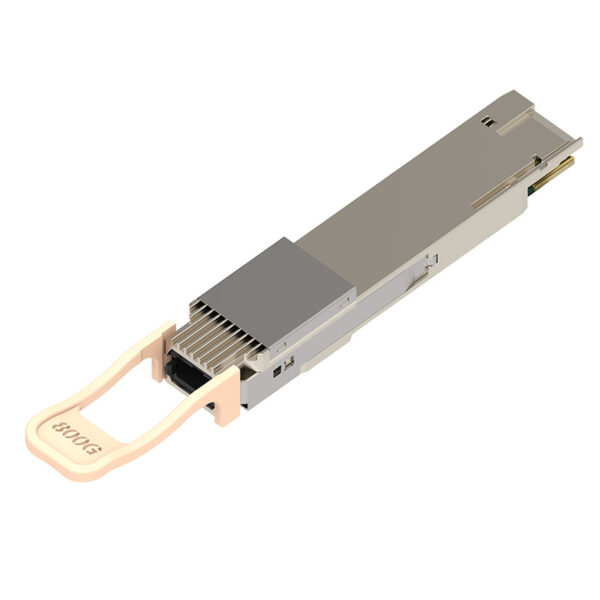

800G QSFP-DD SR8
800G QSFP-DD SR8 transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 100m of multi mode fiber. They are compliant with the QSFP-DD MSA and IEEE 802.3db.The optical transceiver is RoHS compliant.
800G QSFP-DD SR8
800G QSFP-DD SR8 transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 100m of multi mode fiber. They are compliant with the QSFP-DD MSA and IEEE 802.3db.The optical transceiver is RoHS compliant.
800G QSFP-DD SR8 Key Features
Hot-pluggable QSFP-DD Type 2A form factor
Supports 850Gb/s aggregate bit rate
Power dissipation <15W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on OM4 Multi Mode Fiber (MMF)
Aligned with IEEE 802.db
8x100G PAM4 VCSEL-based 850nm transmitter
8x100G PAM4 retimed 800GAUI-8 electrical interface
MPO-16 APC receptacles
I2C management interface
RoHS compliant
Application
DATACOM
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
