400G OTN Muxponder
400G OTN Muxponder

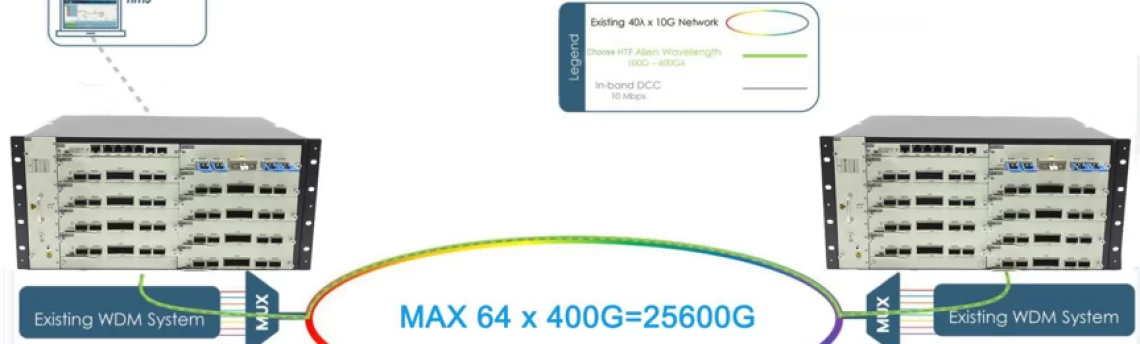

HTF 400G Single Wavelength Muxponder equipment help you reduce overall CAPEX and OPEX and enabling to easily and cost-effectively roll-out service and increase capacity of enterprise DCI (data center interconnect) and metro networks.
HTF 400G Muxponder is designed for high-speed data transmission, delivering an impressive 400Gbps bandwidth, making it an ideal solution for challenges in data center interconnects, 5G transport networks, and cloud computing.
| System Parameter | Technical Indicator | |

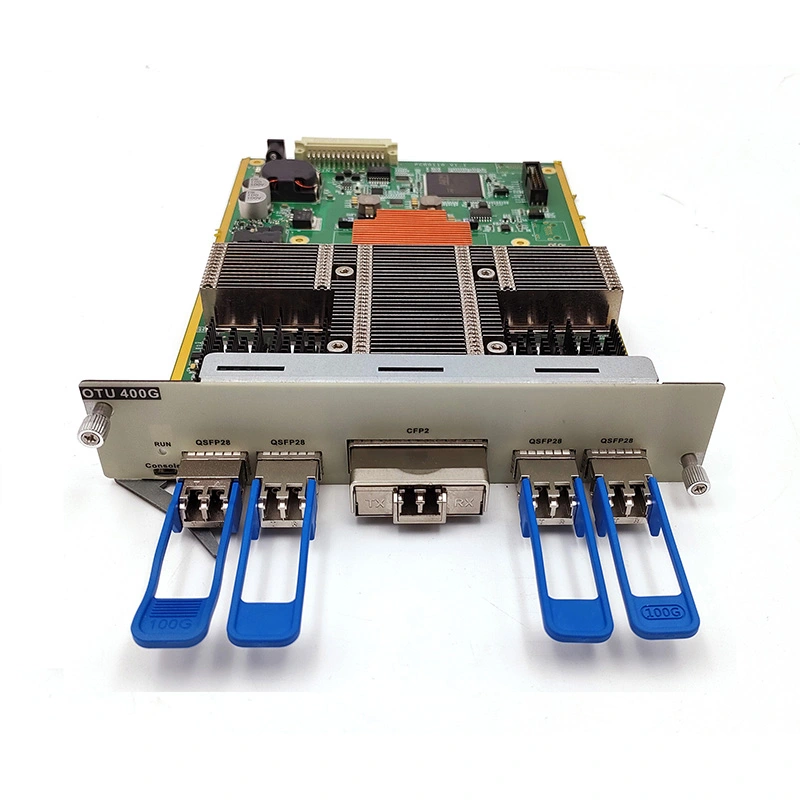

| Model : HT6000-FQ2CFP2 | 4×QSFP28 to CFP2-DCO 400G Coherent Module Muxponder | |
| Center Wavelength | DWDM 1529.5~1565.50nm | |
| Data Rate | 400Gbps | |

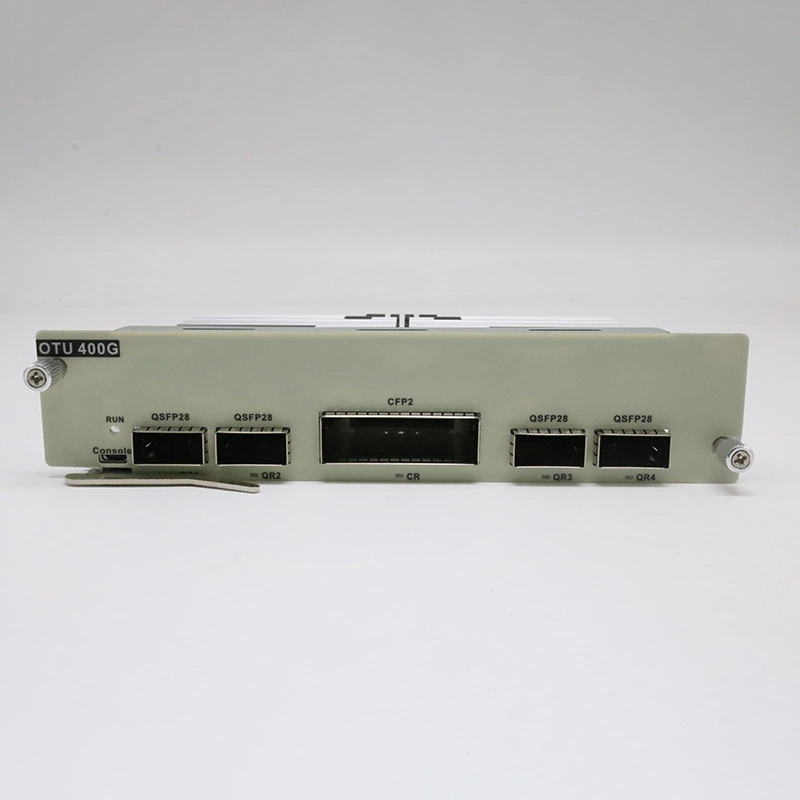

| 400G Interface | Client Side | 4xQSFP28 module |
| Line Side | CFP2 400Gbps coherent module | |
| FEC (gain, delay, BER threshold) | 200G-QPSK, 20% SDFEC, 2x100G | Rx OSNR Tolerance: 13.8dB |
| 200G-16QAM-PS, 20% SDFEC, 2x100G | Rx OSNR Tolerance: 15.8dB | |
| 400G-16QAM-PS, 20% SDFEC, 4x100G | Rx OSNR Tolerance: 21dB | |
| NMS | TELNET, SNMP, WEB | |
| Size | 191 (W) x 253 (D) x 42 (H) mm | |
| Environment | Operating Temperature | -10℃~ 60℃ |
| Storage Temperature | -40℃~ 80℃ | |
| Relative Humidity | 5% ~ 95% Non-condensing | |
| Power Consumption | ≤50W | |
Support single-channel 200G/400G large data rate transmission
Support 191.3~196.1THz, 75GHZ interval wavelength adjustable
Ultra-long-distance transmission: FEC technology can be used to achieve 1000km transmission without regeneration
Large dispersion tolerance: 20000ps.nm
Support DCO output power adjustable
Support port software and hardware loopback test
Support DDM digital diagnosis, OSNR monitoring, real-time monitoring of bit error rate
HTF 400G Muxponder includes integrated OTN FEC capability on the transponder, allowing operation over longer distances or in applications requiring ultra-low bit error rates.

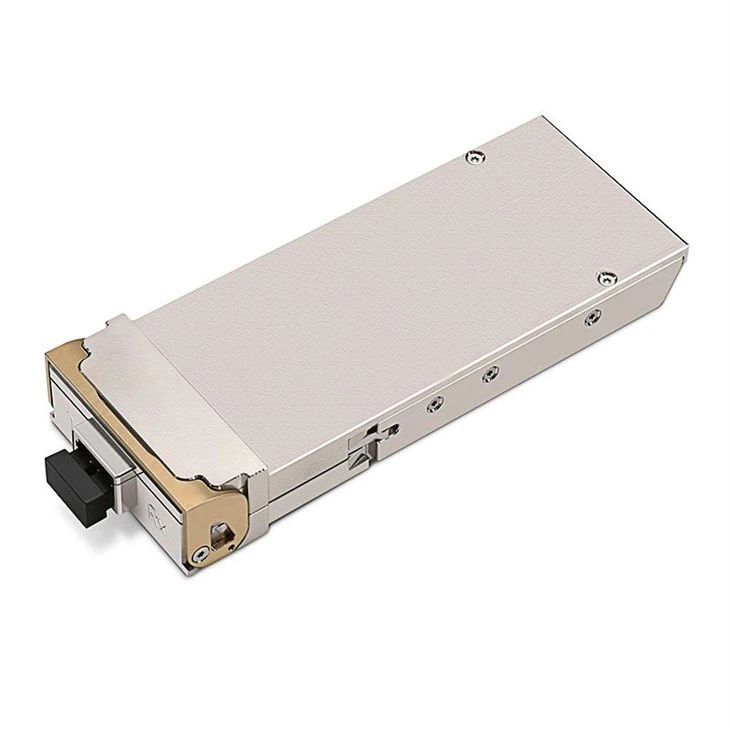

The 400G Muxponder from HTF offer a choice of pluggable QSFP28 Client Side Optics and CFP2 -DCO Coherent DWDM Line Side Optics based on distance and capacity requirements.
The Coherent DWDM Optics are the most technologically advanced and offer benefits on dispersion management, signal reach, and other optical properties. Coherent DWDM Optics can greatly increase the capacity and reach of an optical network, The 400G Muxponder models fits for HT6000 series CH04, CH08, CH20 chassis.
