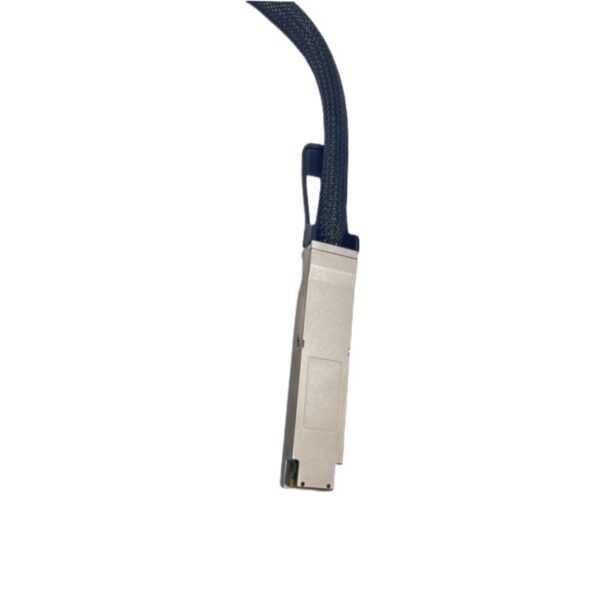

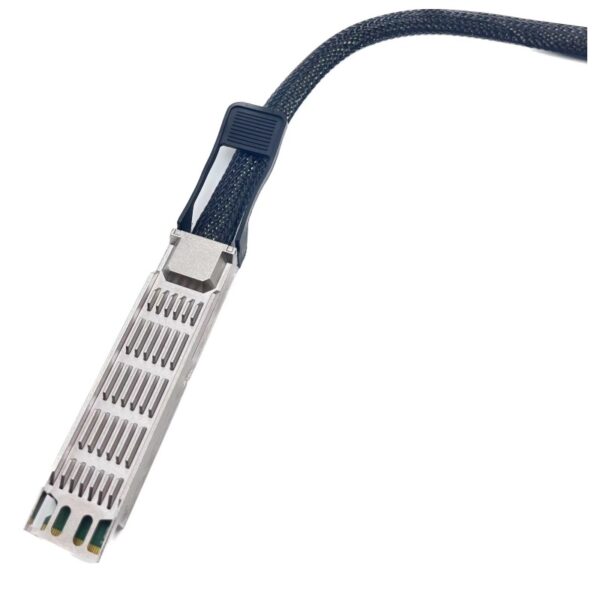

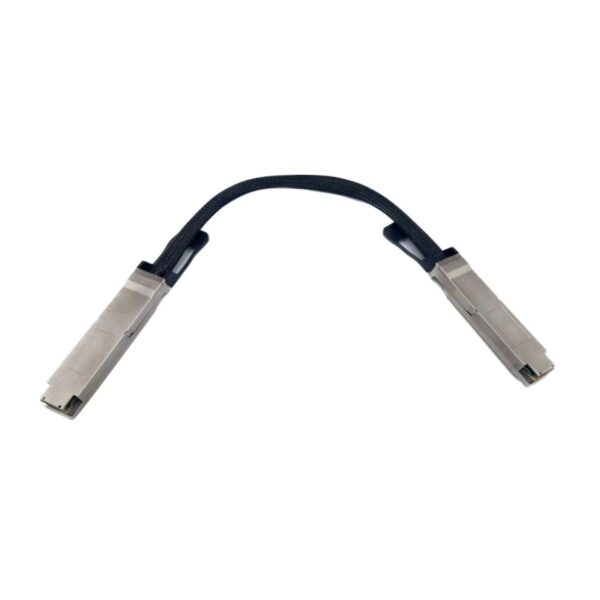

400G OSFP High Speed Copper Cable Assembly
The 400G OSFP56 Passive Direct Attach Copper Twinax Cable is designed for use in 400GBASE Ethernet.，OSFP56 is the module and cage/connector system based on current OSFP, targeting to support the 56Gb/s per lane speed in a 8x lane OSFP system and to enable the OSFP 400G interconnect ecosystem. This will greatly help the legacy OSFP users upgrade the link bandwidth to 400G per port with lower cost and shorter transition time.
400G OSFP High Speed Copper Cable Assembly
Applications
Product features:
- Products Compliance with SFF-8636 ，OSFP_MSA
- Ethernet-Compliance with IEEE802.3cd
- Support 56G (PAM4) electrical data rates/channel
- Support I2C two – line string interface, easy to control
- Support for hot plugging
- Low crosstalk/Low power
- Maximum Link Length: up to 3m
- ROHS Compliance
Product application:
- 400G Ethernet
- SWITCH/Router
- Data storage and communication industry
- Data center, cloud server
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
