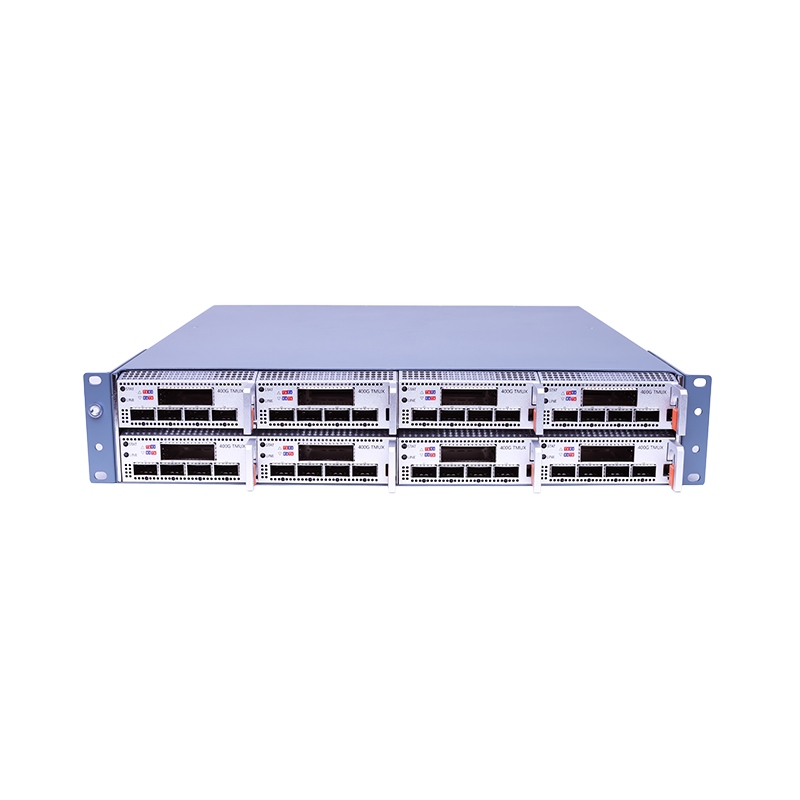

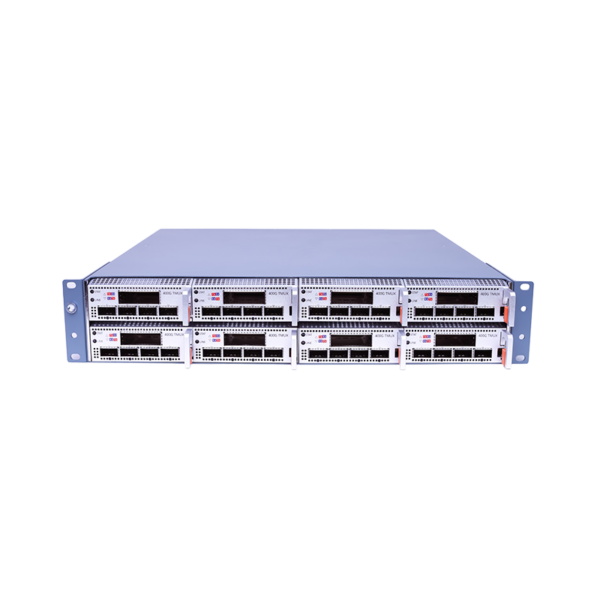

The HT6800 3.2T DWDM System is an ultra-high-integration DCI transmission platform built for small-to-large metro and data center interconnection. Standard 1U chassis supports 3.2T (4×800G service slots); 2U chassis scales to 6.4T (8×800G service slots), reaching industry-leading density. It features flexible rate services, white-box open architecture, and full data center environment adaptability with hot-pluggable modules and forward/rear air cooling design.
The HT6800 series supports mixed insertion of electrical and optical layer cards within the same chassis. All cards are hot-swappable.
| Size | 442 × 510 × 44 mm (W×D×H) |
| MPU | Single MPU |
| Slots | 4 slots — 4×1/4-inch + 2×1/2-inch |
| Capacity | 3.2T (4×800G service slots) |
| Service | 10G / 100G / 200G / 400G / 800G mixed |
| Power | Dual 1+1 · AC220V / High-V DC / -48V · <600W |
| Mgmt Ports | 2×RJ45 GbE, 1×Micro Console, 2×OSC, 2×USB-A |
| Size | 442 × 484 × 88 mm (W×D×H) |
| MPU | Dual MPU with 1+1 protection |
| Slots | 8 slots — 8×1/4-inch + 4×1/2-inch |
| Capacity | 6.4T (8×800G service slots) |
| Service | 10G / 100G / 200G / 400G / 800G mixed |
| Power | Dual 1+1 · AC220V / High-V DC / -48V · <800W |
| Mgmt Ports | 2×RJ45 GbE, 1×RJ45 Console, 2×OSC, 2×USB-A, 2×MUX |
| System Performance | |
| Transmission Capacity | 120×200Gbps / 80×400Gbps |
| Max Capacity (2U) | 6.4T (8 × 800G service slots) |
| Max Capacity (1U) | 3.2T (4 × 800G service slots) |
| Card Dimensions | |
| 2-Slot Board | 216 mm (W) × 254 mm (D) × 42 mm (H) |
| 1-Slot Board | 107 mm (W) × 254 mm (D) × 42 mm (H) |
| Power & Thermal | |
| Power Supply | Dual 1+1 redundancy: AC220V / High-voltage DC / -48V selectable |
| Power Dissipation | 2U <800W；1U <600W（full electrical layer / max fan speed） |
| Cooling | Forward air / rear air cooling design；hot-pluggable fans |
| HT6800-800GTMUX1 — 800G TMUX (2 Slots) | |
| Client → Line | 8×200G → 2×800G；8×100G → 2×400G |
| Protection Mode | 4×200G (1+1) → 1×800G；4×100G (1+1) → 1×400G |
| HT6800-400GTMUX — 400G TMUX (1 Slot) | |
| Client → Line | 4×100G → 1×400G (CFP2)；2×100G → 1×200G (CFP2) |
| HT6800-400GQDD — 400G QSFP-DD (1 Slot) | |
| Client → Line | 4×100G → 1×400G；3×100G → 1×300G；2×100G → 1×200G；1×100G → 1×100G |
| HT6800-400GOEO — 400G OEO (1 Slot) | |
| Client → Line | 4×100G → 1×400G；1×100G → 1×100G |
| HT6800-200GTMUX-1 — 200G TMUX-1 (2 Slots) | |
| Client → Line | 20×10G → 1×200G；10×10G → 1×100G |
| HT6800-200GTMUX-2 — 200G TMUX-2 (1 Slot) | |
| Client → Line | 2×100G → 1×200G；1×100G → 1×100G |
| HT6800-100GTMUX — 100G TMUX (1 Slot) | |
| Client → Line | 2×50G QSFP28 → 1×100G QSFP28 |
| HT6800-OA — Optical Amplifier (2 Slots) | |
| Function | Fiber optic amplifier supporting BA (Booster Amplifier) / PA (Pre-Amplifier) |
| HT6800-OLA — Line Amplifier (2 Slots) | |
| Function | Fiber optic amplifier supporting 2×LA (Line Amplifier) for ultra-long-haul |
| HT6800-OP1 / OP2 — Optical Protection (1 Slot each) | |
| OP1 | Supports 1× OLP 1+1 optical path protection |
| OP2 | Supports 2× OLP 1+1 inside（dual path, single slot） |
| HT6800-WSS09 — Wavelength Selector (2 Slots) | |
| Dimensionality | 9-dimensional wavelength selector board |
| Integration | WSS + BA + PA + OSC on a single board |
| HT6800-OTDR — OTDR Monitor (1 Slot) | |
| Monitoring | Multi-channel auto-switching；polling of 8 fiber direction cables |
| HT6800-OCM — Channel Monitor (1 Slot) | |
| Monitoring | Multi-channel power monitoring of 8-core fiber optic cables |
| HT6800-TFF — TFF Multiplexer (1 Slot) | |
| Function | MUX / DEMUX of 4 fixed wavelengths |
| Network Management | |
| Web GUI | Standalone web-based network management（browser, no client required） |
| CLI | Supports CLI, SSH, Telnet, and other management methods |
| Protocol | NETCONF / SNMP v1/v2c/v3 |
| SDN / Open API | YANG model via NetConf protocol；Open API for management decoupling |
| Routing | OSPF · BGP（Layer 3）；RSTP ring topology（Layer 2） |
| Physical Management Ports — 2U | |
| Ethernet | 2 × RJ45 Gigabit Ethernet port |
| Console | 1 × RJ45 Console |
| OSC | 2 × OSC Gigabit / 100 Mbps port |
| USB | 2 × USB Type-A port |
| MUX | 2 × MUX port |
| Physical Management Ports — 1U | |
| Ethernet | 2 × RJ45 Gigabit Ethernet port |
| Console | 1 × Micro Console |
| OSC | 2 × OSC Gigabit / 100 Mbps port |
| USB | 1 × USB Type-A port |
| Environmental Specifications | |
| Working Temperature | -5°C ~ 45°C |
| Storage Temperature | -40°C ~ 80°C |
| Humidity | 5% ~ 95%（no condensation） |
| Power | |
| Power Supply | Dual 1+1 redundancy: AC220V / High-voltage DC / -48V selectable |
| Power Dissipation | 2U: <800W；1U: <600W（full electrical layer / maximum fan speed） |
| Certifications | |
| Compliance | CE · RoHS · FCC |
