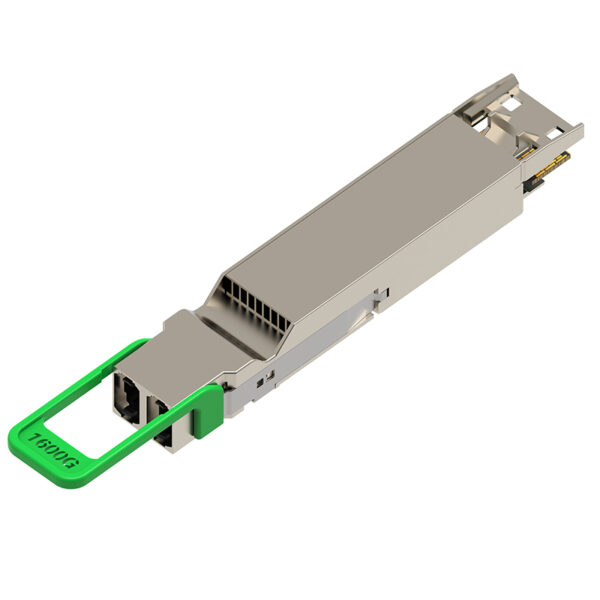

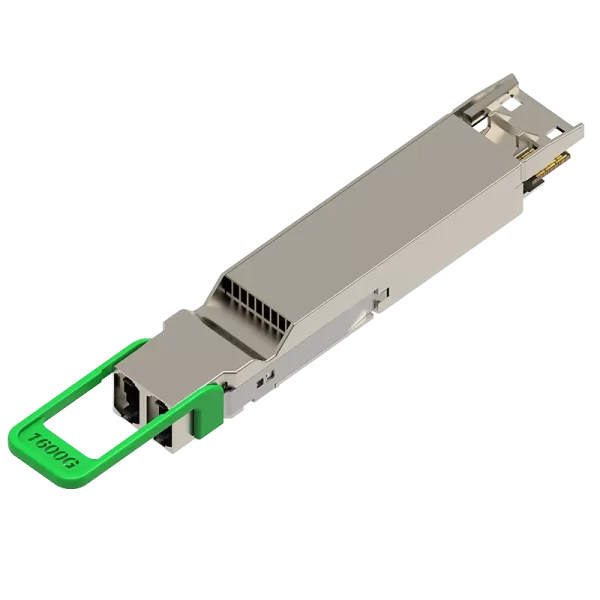

1.6T OSFP-XD DR8+
1.6T OSFP-XD DR8+ is designed to transmit and receive serial optical data links up to 212.5 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 1600G Ethernet specs and OSFP-XD MSA.
1.6T OSFP-XD DR8+ is designed to transmit and receive serial optical data links up to 212.5 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 1600G Ethernet specs and OSFP-XD MSA.
1.6T OSFP-XD DR8+ Key Features
Hot-pluggable OSFP-XD form factor
Supports 1600Gb/s aggregate bit rate
Power dissipation <25W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 500m on Single Mode Fiber (SMF)
Aligned with IEEE 802.3df
8x200G PAM4 Cooled EML 1311nm transmitter
16x100G PAM4 retimed 400GAUI-4 electrical interface
Dual MPO-12 receptacles
I2C management interface
RoHS compliant
1.6T OSFP-XD DR8+ Application
DATACOM
Specifications
Data Rate: 1600Gb/s
Distance: 2km
Case Temperature: 0~70℃
Voltage Supply: 3.3Va
Transmitter: EML
Receiver: PD
Wavelength: 1311nm
Connector: Dual MPO-12
Power consumption（Max): 25W
