- Overview

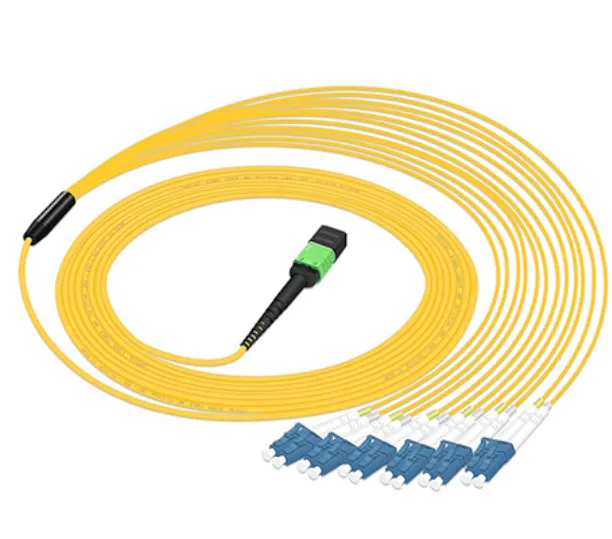

MPO/MTP branch fan out optical cable is the use of high-density multi-core optical cable and MPO/MTP connector, through the middle of the branches structure to achieve from MPO/MTP branch to LC, SC, FC, ST, MTRJ and other common connectors. Can choose various specifications of 4~48 core single-mode and multi-mode optical cable, such as ordinary G652D/G657A1 / G657A2 single-mode optical cable, multi-mode 62.5/125, 10G OM2 / OM3 / OM4, or bending performance of 10G multi-mode optical cable.
2．Advantage
High quality process and test guarantee
High density application, save wiring space
With optimal optical network performance
Optimal data center cabling solution application
- Characteristics
Connect the main cable output to the distribution frame system
Optional 8/12/24 core
MPO/MTP connector
Branch connectors are LC, SC, ST, E2000, MTRJ, mini-LC, and can be divided into single or double joint forms.
There are round, square or custom branching structures, with various lengths
Sector branch cable 0.9/2.0/3.0mm
Conforms to Telcordia GR-1435-core, GR-2866-core, GR-326-core, RoHS.
- Application
Pre-junction bridge wiring between workstations
High density fiber line management
The data center
LAN/WAN clients
- Performance parameters
(1) MPO/MTP connector:
| Type | Single-mode (APC polish) | Single-mode (PC polish) | Multi-mode (PC polish) | |||
| Fiber count | 4,8,12, 24 , etc. | 4,8,12, 24, etc. | 4,8,12, 24, etc. | |||
| Fiber type | G652D,G657A1, etc. | G652D,G657A1, etc. | 62.5/125,OM2,OM3,OM4, etc. | |||
| Maximum Insertion Loss | Elite/Low loss | Standard | Elite/Low loss | Standard | Elite/Low loss | Standard |
| ≤0.35 dB
0.25 dB Typical |
≤0.70 dB
0.5 dB Typical |
≤0.35 dB
0.25 dB Typical |
≤0.70 dB
0.5 dB Typical |
≤0.35 dB
0.2 dB Typical |
≤0.5 dB
0.35 dB Typical |
|
| Return Loss | ≥55 dB | ≥45 dB | ≥20 dB | |||
| Durability | ≥200 times | ≥200 times | ≥200 times | |||
| Test Wavelength | 1310nm / 1550nm | 1310nm / 1550nm | 850nm / 1300nm | |||
(2) Common single core connector:
| Type | Single-mode (APC polish) | Single-mode (UPC polish) | Multi-mode (UPC polish) | |||
| Fiber type | G652D,G657A1, etc. | G652D,G657A1, etc. | 62.5/125,OM2,OM3,OM4, etc. | |||
| Maximum Insertion Loss | Low loss | Standard | Low loss | Standard | Low loss | Standard |
| ≤0.1dB
0.05 dB Typical |
≤0.30 dB
0.25 dB Typical |
≤0.1dB
0.05 dB Typical |
≤0.30 dB
0.25 dB Typical |
≤0.1dB
0.05 dB Typical |
≤0.30 dB
0.25 dB Typical |
|
| Return Loss | ≥60 dB | ≥50 dB | ≥25 dB | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Test Wavelength | 1310nm / 1550nm | 1310nm / 1550nm | 850nm / 1300nm | |||
Note: The polarity relations of all MPO/MTP multi-fiber cable jumper components can be selected as parallel (A-to-a, b-to-b), cross-over (A-to-b, b-to-a), or paired cross-over.
