1. What Is a CCWDM Multiplexer?
A CCWDM multiplexer is a compact wavelength-division device that uses a set of lenses and thin-film filters to route multiple CWDM channels. It processes different wavelengths through precise optical paths, and it delivers excellent performance in dense optical networking systems.
Moreover, its modular design makes installation more efficient and reduces overall wiring complexity.
2. How a CCWDM Multiplexer Works

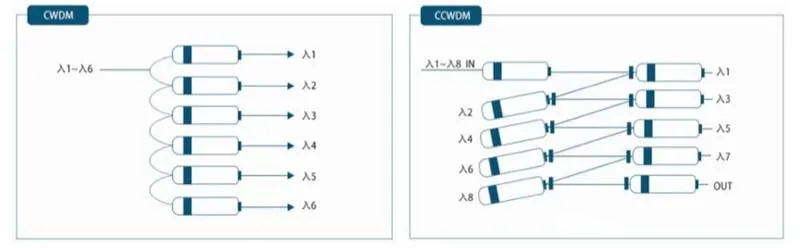

To wire the device correctly, you should first understand how it handles optical signals. When signals λ1, λ2…λn enter the CCWDM multiplexer, the input lens focuses them onto the first filter.
- The λ1 signal moves through the matched filter and reaches the correct output fiber.
- Other wavelengths reflect toward the next filter, where additional separation occurs.
Consequently, each wavelength follows a specific optical route until the system directs all signals to their assigned channels.
In addition, this zigzag coupling structure allows the device to maintain low loss and high stability, which benefits multi-channel transmission.
3. Wiring Procedure for a CCWDM Multiplexer
Wiring a CCWDM multiplexer becomes easy when you follow a clear and structured process. The steps below help ensure accuracy and stable performance.
Step 1 — Identify the Common Port
Locate the common port first because it connects directly to the line fiber or optical transceiver.
In addition, confirm the direction of transmission before connecting any patch cords.
Step 2 — Connect Each Wavelength Port
Each output port carries a wavelength label such as 1270 nm, 1290 nm, or 1310 nm.
Match the cable with the correct port so that the system routes the wavelength properly.
Moreover, avoid mixing channels, as this may cause unnecessary signal loss.
Step 3 — Keep All Fiber Interfaces Clean
Dust often affects optical performance.
Therefore, clean every connector before plugging it into the CCWDM multiplexer.
This simple step greatly improves link stability.
Step 4 — Confirm the Working Direction
Check whether the device will multiplex or demultiplex signals in your network. Although the structure looks similar, the direction determines the correct wiring.
Furthermore, proper direction control helps avoid installation errors.
Step 5 — Test and Verify the Optical Link
After wiring, connect the optical transceiver and check the power level.
If the readings stay stable, the wiring is correct.
Consequently, you can move forward with full network deployment.
4. CCWDM Product Reliability
HTF manufactures CCWDM wavelength-division multiplexers in large volume and maintains strict quality control.
Its products offer low insertion loss, excellent stability, and reliable operation in long-distance networks.

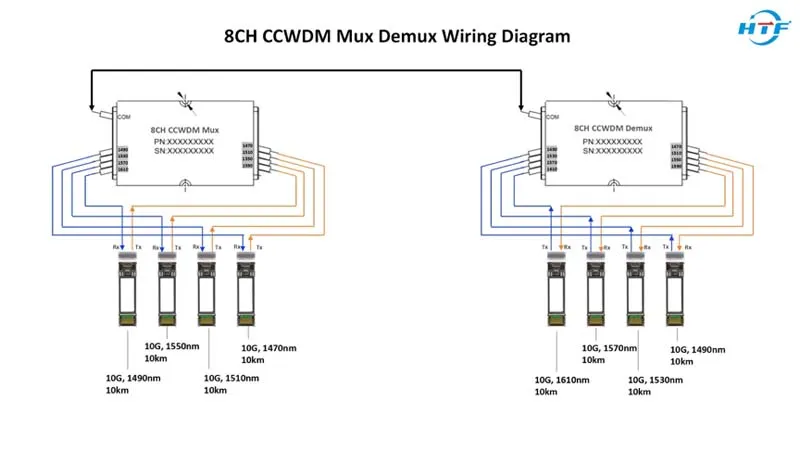

In addition, customers who purchase an CCWDM multiplexer will receive a complete wiring diagram, including optical module connection guidance, which makes installation smoother and faster.
