The digital age thrives on speed. CWDM and DWDM power today’s networks, driving 5G, cloud computing, and big data. These technologies act like fast lanes on the information highway. CWDM offers cost-effective short-range solutions. DWDM delivers high-capacity, long-distance performance. Together, they spark a new era of ultra-fast transmission.
CWDM and DWDM: Key Technical Differences
CWDM and DWDM send multiple data streams through a single fiber. Think of them as dedicated lanes on a highway. However, their technical features set them apart.
CWDM (Coarse Wavelength Division Multiplexing):
CWDM uses wavelengths from 1271-1611nm, spaced 20nm apart. It supports up to 18 channels. Non-cooled lasers keep costs low. Transmission reaches about 160km. Without optical amplification, CWDM suits short distances. For example, a retail chain uses CWDM to connect offices, balancing cost and speed.
DWDM (Dense Wavelength Division Multiplexing):
DWDM features tighter spacing (0.2-1.2nm, 50/100GHz). It supports 40-192 channels. Cooled lasers ensure precision. Erbium-Doped Fiber Amplifiers (EDFA) enable thousands of kilometers. DWDM powers 5G backbones and cloud networks. For instance, a streaming giant uses DWDM for global, lag-free 4K video.
| Feature | CWDM | DWDM |
| Wavelength | 1271-1611nm | 1528-1561nm (C-band) |
| Spacing | 20nm | 0.2-1.2nm (50/100GHz) |
| Channels | Up to 18 | 40-192 |
| Distance | ~160km | Thousands of km (with EDFA) |
| Cost | Low (non-cooled lasers) | High (cooled lasers) |
In short, CWDM excels in affordability. DWDM dominates in capacity. Together, they shape modern networks.
CWDM and DWDM: Applications Across Industries
CWDM and DWDM shine in diverse scenarios. Each meets unique needs, powering businesses and networks worldwide.
CWDM Applications:
CWDM fits metropolitan networks, enterprise connectivity, and data center links. Its low cost benefits small businesses. For example, a regional retailer uses CWDM to sync inventory across stores. This boosts efficiency. CWDM also supports 5G access layers, delivering affordable bandwidth.
DWDM Applications:
DWDM drives national backbones, cloud hubs, and submarine cables. It handles massive data flows. A global streaming platform relies on DWDM for seamless content delivery. DWDM also supports AI clusters, meeting skyrocketing computing demands.
Industry Impact:
CWDM makes network upgrades accessible. It fuels digital transformation for small firms. Meanwhile, DWDM enables ultra-high bandwidth. It supports 5G, AI, and IoT growth. Like local buses and global jets, CWDM and DWDM build a connected world.
CWDM and DWDM: Innovations for the Future
Innovations in CWDM and DWDM boost efficiency. They cut costs and enhance flexibility.
CWDM Innovations:
Hybrid CWDM/DWDM systems stand out. They insert DWDM wavelengths into CWDM’s 1530-1550nm range. This adds up to 28 channels. No new fibers are needed. It’s like upgrading a road without rebuilding. This suits cable networks and enterprise expansions.
DWDM Advancements:
25G Tunable DWDM Modules: These use tunable chips, supporting 96 channels. They ensure 15km stable transmission. Auto-wavelength tuning simplifies maintenance.
800G Modules: The 800G QSFP-DD DR8 uses silicon photonics. It delivers 8 parallel 100G streams. Low power and high density define it. Deployment peaks are expected in 2025-2026. These modules power data centers and long-haul networks.
These breakthroughs make CWDM nimbler and DWDM stronger. They’re like adding smart navigation to highways. CWDM and DWDM pave the way for faster networks.
CWDM and DWDM: Trends Shaping Tomorrow
The future of CWDM and DWDM is bright. Technology and market forces drive their growth.
Technology Trends:
DWDM evolves toward 400G, 800G, and 1.6T speeds. Silicon photonics cuts power use. AI-powered platforms optimize wavelengths and troubleshoot issues. CWDM adopts MWDM for 5G’s 12-wavelength needs. It keeps costs low.
Market Trends:
5G, cloud, and AI fuel demand for CWDM and DWDM. CWDM thrives in short-range networks. DWDM leads in backbones and submarine cables. China’s market grows fast, driven by 5G and policy support. By 2030, its global share will rise.
Vision for Tomorrow:
CWDM and DWDM will create ultra-fast, low-latency networks. They’ll power smart cities, cloud services, and the metaverse. Their synergy unlocks a connected future. CWDM and DWDM ignite a revolutionary era!
Partner with HTF for a Connected Future
CWDM and DWDM transform connectivity. CWDM offers affordable solutions. DWDM delivers unmatched capacity. Their innovations fuel a new era of ultra-fast transmission.

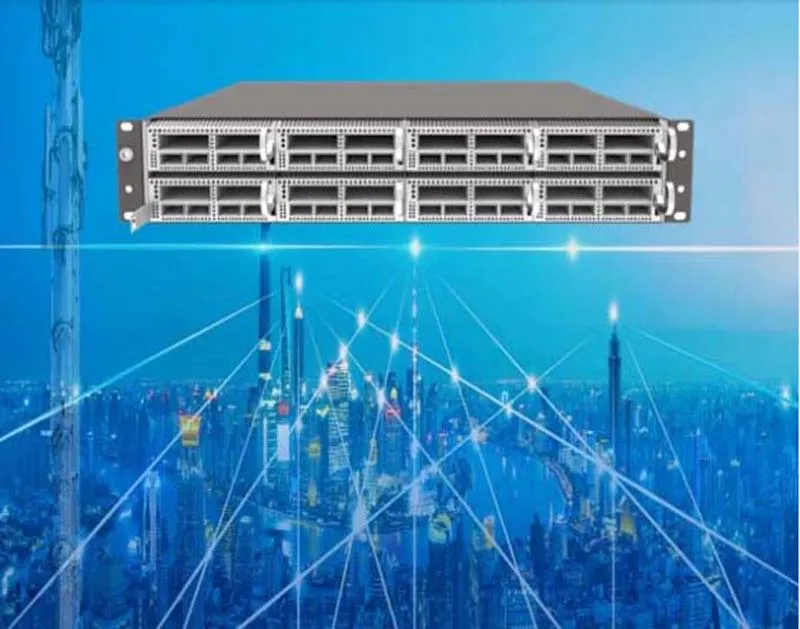

As a leading fiber optic and WDM solution provider, HTF builds and optimizes networks. With over 10 years of expertise, HTF serves data centers, 5G, cloud, metro, and access networks. The HTF HT6000, a compact, high-capacity OTN system, uses CWDM and DWDM platforms. It supports multi-service transmission and over 1.6T capacity. Ideal for backbones and core networks, it’s cost-effective for IDC and ISP operators.
Choose HTF to unlock CWDM and DWDM potential. Ignite your network’s future today!
